How should you specify corrosion resistant reinforcement for chloride exposure?
Chloride exposure from deicing salts or marine environments shortens the service life of reinforced concrete unless you select and manage reinforcement that limits corrosion. This article gives a practical, ordered decision and procurement framework you can use on Ontario projects: when to require corrosion resistant reinforcement, which options to consider, copy-ready specification language, supplier verification steps for an MTO context, and delivery and on-site checks that protect performance.
When to require corrosion resistant reinforcement
Begin by confirming exposure and lifecycle goals. Corrosion risk is driven by chloride source, concrete cover, and intended service life. National Research Council Canada guidance explains that chloride ingress and deicing salts are the most common causes of reinforcement corrosion in North America, and durability planning must reflect that risk. See Corrosion-resistant reinforcing steel in concrete structures and Assessment of corrosion of reinforcement in concrete for detailed guidance and diagnostics.
Exposure indicators to act on
- Regular application of deicing salts to the structure or adjacent approaches.
- Marine splash, tidal zones, or airborne chlorides near the structure.
- Structural importance and long expected service life such as bridges, parking decks, and marine infrastructure.
Design intent questions to answer before specifying
- What is the required design service life and acceptable inspection interval?
- Will the structure receive routine maintenance that would allow early detection of corrosion?
- Are there budget constraints that force a hybrid solution, such as selective use of higher-cost materials?
Use the NRC assessments to justify when corrosion resistant reinforcement is appropriate for a project with significant chloride exposure. If exposure or life expectancy is unclear, obtain environmental monitoring or a chloride risk assessment before proceeding.
Compare corrosion resistant reinforcement options and when to use each
Five practical categories cover most Ontario applications. Comparative studies evaluate coated, alloyed, and non-metallic reinforcements under chloride exposure and offer data on durability and bond behaviour; use those studies when you must trade off cost and longevity. See Assessment of reinforcement materials and a decision framework for chloride-exposed concrete structures for comparative data.
Epoxy-coated rebar
Use case: common choice for bridge decks and parking structures where moderate chloride exposure is expected and budget is limited. Constructability: fits standard fabrication but requires careful handling to prevent coating damage. Bond: generally acceptable but bonding can be reduced if the factory coating is thick or damaged. Specify approved coating repair methods and inspector acceptance criteria.
Galvanized or dual-coated systems
Use case: where enhanced sacrificial protection is desired without full alloyed rebar cost. Constructability: similar to steel but some fabrication steps differ. Consider these systems where coating adhesion and field repair procedures are proven for the exposure class.
Corrosion-resistant alloyed steels (for example MMFX or CRS)
Use case: economic alternative to stainless when alloyed steels show improved electrochemical resistance. The NRC evaluated MMFX-type steels and reported improved performance in chloride environments; verify manufacturer data and field history before acceptance. See Evaluation of corrosion resistance of MMFX2 steel reinforcement for test findings.
Stainless steel rebar
Use case: highest durability in severe marine or heavy chloride exposure zones and for critical details where replacement would be costly. Constructability: higher material cost and special welding or handling may be required. Stainless provides superior long-term corrosion resistance but justify cost by life-cycle analysis and reduced maintenance.
Glass fibre reinforcing bars (GFRB)
Use case: non-metallic alternative where electromagnetic neutrality and corrosion immunity are priorities, for secondary reinforcement or specialised applications. Constructability: cut-and-bend behaviour differs from steel and connectors or anchorage must be detailed specifically.
Hybrid designs are common. For example, specify stainless in the top mat of a bridge deck where splash and airborne chloride load is highest, and epoxy-coated or alloyed bars in lower mats to control costs. Use comparative test evidence to support hybrid selection when requested by reviewers or owners.
How to write specification clauses and shop-drawing notes
Provide copy-ready prompts in the specification that make supplier responsibility and acceptance criteria unambiguous. Reference recognised guidance where appropriate.
Minimum specification items to include
- Product definition: manufacturer, product name, grade or alloy, coating system and standard of manufacture.
- Acceptance criteria: mill test reports or manufacturer certificates, batch traceability, and material marking.
- Coating specification: method, nominal thickness range if applicable, and factory inspection criteria.
- Repair and patching: approved field repair methods and materials for cut or abraded coating areas and who is responsible for repairs.
- Testing and references: require manufacturer test certificates and reference documents such as relevant NRC reports where applicable.
Copy-ready shop-drawing note examples
Include succinct notes on shop drawings such as: “Provide product data, mill test reports, and batch traceability for all corrosion resistant reinforcement. Mark each bundle with manufacturer, grade and heat number. For coated bars, provide coating thickness and proposed field repair method. Do not deliver material without QA documentation.”
Also require a QA/QC plan for handling coated or non-metallic reinforcement during fabrication and delivery. For more background on standard grade selection and when to use specific grades, consult A Practical Guide to Reinforcing Steel Grades on Dass Rebar’s website.
Supplier verification and procurement checklist for Ontario projects
When you issue an RFQ or tender, require documentary proof and capability evidence. Dass Rebar is an MTO-approved supplier with in-house estimating, detailing, fabrication and delivery resources, and it can provide many of these documents on request.
Documents and confirmations to request
- MTO approval evidence where projects require it or written confirmation of product acceptance for infrastructure work.
- Mill test reports or manufacturer’s chemical and mechanical certificates for each heat or coil.
- Batch traceability and bundle marking to verify material delivered to the job matches certificates.
- Shop drawings with coating details, splice and lap notations, and repair instructions.
- A QA/QC plan covering fabrication, storage, coating inspection, and truck loading procedures.
- Logistics capability: evidence of dedicated trucking and on-site assembly resources if these are specified.
Ask suppliers to submit these documents with the RFQ. Single-point evidence such as an MTO approval letter plus sample mill test reports and marked shop drawings provides strong assurance of compliance.
Fabrication and detailing implications you must include in drawings
Different materials need different fabrication notes. Alloyed or stainless bars may require modified bend schedules and welding procedures. Coated bars can be damaged during cutting and bending so include clear repair requirements.
Key detailing points
- Specify permitted bend radii or require shop bending where coating and alloy properties are controlled.
- Annotate all splices and laps with the required protective detail such as overlap length and sealing of lap areas when coatings are present.
- Require prefabricated cages and welded mesh deliveries where site congestion increases handling risk.
- Show field repair: identify approved coating repair kits or methods and require inspector sign-off after any touch-up.
Dass Rebar offers in-house detailing and fabrication that can reduce field handling and coating damage by delivering prefabricated assemblies to sequence with pour schedules.

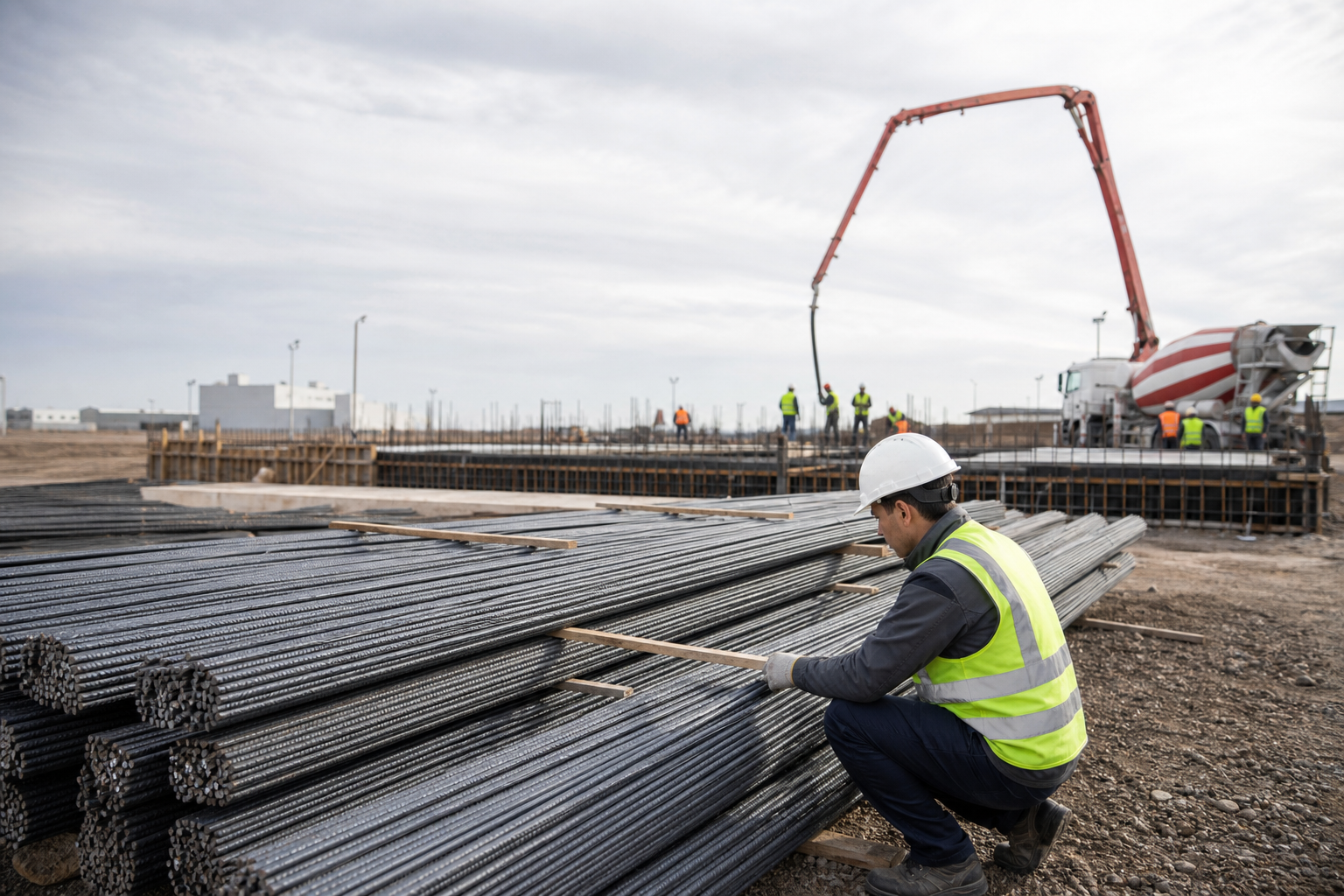

Delivery, storage and on-site handling checks before pour
Protecting protective systems during delivery and staging is as important as the product selection. The NRC cautions that handling and environmental exposure are common causes of localised coating failure and later corrosion.
On-truck and on-site inspection checklist
- Confirm documentation matches material on the truck: mill reports, bundle tags, and coatings report.
- Inspect coating condition visually. Minor gouges are acceptable if repaired according to the approved method and recorded.
- Store off the ground, covered and supported to prevent bending and pooling of water on coated surfaces.
- Segregate coated or non-metallic reinforcement from uncoated stock to avoid accidental damage.
- Require inspector sign-off for repaired areas prior to placement.
Plan coordinated delivery windows and on-site assembly to reduce repeated handling. Dass Rebar’s dedicated trucking fleet and on-site assembly services can reduce these handling risks and create predictable delivery windows.
Step-by-step decision and procurement flow checklist
- Confirm exposure level and target service life, referencing NRC durability guidance. Stop if exposure is uncertain and obtain environmental monitoring data.
- Select candidate reinforcement types based on exposure, constructability and life-cycle cost. Stop and evaluate hybrid options if budget constraints exist.
- Add specification clauses and copy-ready shop-drawing notes, including testing and repair methods and reference recognised guidance where applicable.
- Issue RFQ requiring mill test reports, batch traceability, MTO approval evidence if applicable, and shop drawings.
- Review supplier documents and shop drawings, confirm fabrication protocols, and require a QA/QC plan before approving fabrication.
- Schedule delivery and on-site assembly with explicit inspection points and repair acceptance criteria.
- Perform pre-pour inspection and sign-off only after documentation, visual checks, and repaired coating approvals are complete.
Next steps and contact for a specification review
If you want a specification review, request these minimum documents from your supplier: MTO approval confirmation for infrastructure projects, mill test reports, batch traceability, sample shop drawings showing coating and splice details, and a QA/QC plan describing fabrication and delivery. Dass Rebar can provide these documents and coordinate estimating, detailing, fabrication and delivery for Ontario projects. For direct assistance and an RFQ package visit Dass Rebar.
Frequently asked questions
What are the main types of corrosion resistant reinforcement and when should I pick each one?
Choose epoxy-coated bars for moderate exposure where cost control is needed, alloyed corrosion-resistant steels when you want improved performance without stainless cost, stainless steel for the most aggressive exposures or critical details, and GFRB for non-metallic needs. Use hybrid layouts to balance cost and durability. Refer to comparative studies for detailed test results.
Can I use epoxy coated rebar for bridge decks exposed to deicing salts?
Yes for many bridge decks, but only if handling and repair procedures are controlled and long-term service life requirements are moderate. For severe exposure or long design life, consider alloyed or stainless alternatives. Document repair methods and require acceptance criteria on shop drawings.
What documentation should I require from an MTO approved rebar supplier?
Require MTO approval evidence, mill test reports, batch traceability, marked bundles, shop drawings with coating details, and a QA/QC plan covering fabrication and delivery. Dass Rebar can supply these items on RFQ.
How do coating repairs after cutting or bending affect acceptance at the job site?
Minor repairs are acceptable when completed with the approved kit and recorded. Require inspector sign-off for each repaired area and document the repair method in the QA/QC file. Reject material with extensive or repeated coating damage.
When is stainless steel rebar justified despite higher material cost?
Justify stainless when replacement or maintenance access is difficult, the structure is mission-critical, or life-cycle costing shows lower total cost due to reduced maintenance. Use it in top mats or detail-critical zones where chloride attack is highest.
