Overview and why it matters

A steel bar bending machine is a purpose-built piece of fabrication equipment that bends reinforcing bars (rebar) and other steel bars to defined angles and radii. Whether you are preparing stirrups, hooks, U-bars, or complex shapes for slabs, beams, columns, or precast elements, a reliable bender improves repeatability, throughput, and worker ergonomics compared with manual methods.

This guide explains how a typical machine works, the major types you will encounter, key specifications to evaluate, practical setup and operation steps, safety and maintenance routines, and common troubleshooting tips. Use it as a decision and training reference for shop teams and site supervisors who need consistent bends with minimal rework.

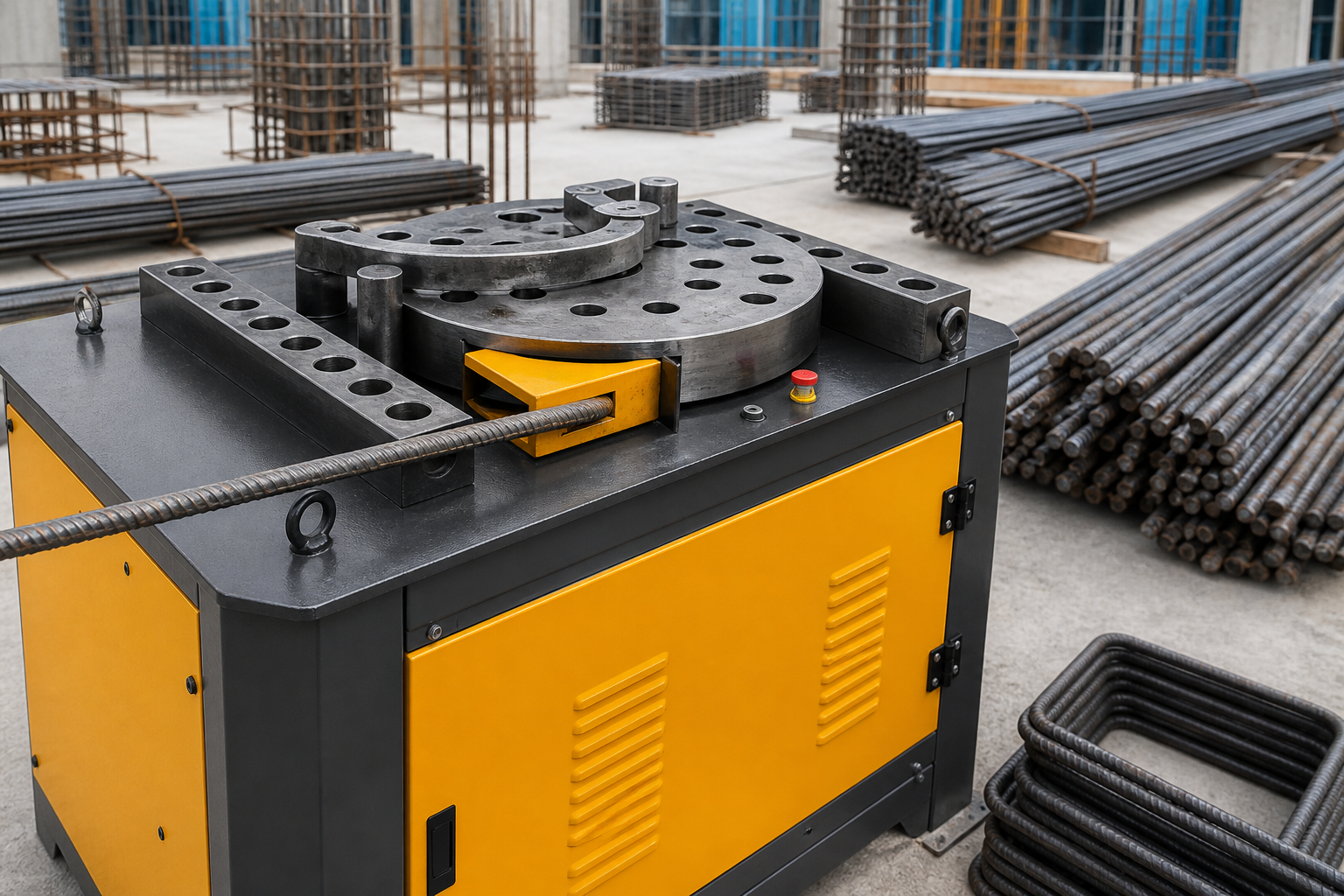

How a steel bar bending machine works

Most rebar benders share a common architecture designed to produce controlled, repeatable bends:

• Drive system: Electric motor and gearbox (or hydraulics) rotate a bending plate at controlled speed and torque.
• Bending pins/dies: Interchangeable pins or formers mounted on the plate determine the bend radius. A central pin rotates; a fixed or adjustable back gauge/stopper holds the bar in place.
• Angle control: A mechanical stop, cam, or electronic controller governs the rotation angle (for example, 45°, 90°, 135°, 180°).
• Worktable and guides: Flat surface and side guides support the bar, keeping it aligned and controlling hook orientations.
• Foot or hand controls: Operators initiate and stop cycles using a foot pedal, two-hand buttons, or a programmable panel.
• Safety devices: Emergency stop, guards, and interlocks reduce risk during operation.

During a bend, the rotating pin sweeps the bar around the die, cold-forming the steel without cutting. Correct die choice prevents excessive strain and surface damage, while proper angle control ensures the part meets the shop drawing.

Common machine types

Different projects and volumes call for different machine classes. The following categories cover most shop and site needs:

• Portable/Manual assist benders: Compact, often single-phase units with simple angle stops. Suitable for light bars, small batches, and on-site adjustments.
• Semi-automatic rotary benders: Shop-grade machines with gear-driven plates, interchangeable dies, angle selectors, and foot pedals. These are the workhorses for repetitive 90° and 135° bends, hooks, and stirrups.
• Programmable automatic benders: Machines with electronic angle setting, multi-step bend programs, and counter features. Useful for higher volume, multiple-angle parts where repeatability is critical.
• CNC rebar benders/centers: Integrated systems that can store programs, manage sequences, and interface with cut lists. Ideal for production environments with rigorous shape libraries and high throughput.
• Hydraulic benders: Use hydraulic cylinders for high-torque bending, helpful for larger-diameter bars or hard-grade materials where electric-only torque may be limiting.

Key specifications and selection checklist

Before purchasing or deploying a steel bar bending machine, align its capabilities with your drawings, bar schedule, and production targets. Compare models using the checklist below:

• Maximum bar diameter and grade: Verify published capacities for the largest bar you intend to bend and the material grade you use.
• Bend angle range and accuracy: Typical needs include 90°, 135°, and 180° hooks. Look for repeatable angle control and fine adjustments.
• Throughput: Consider cycle time, setup effort between angles, and whether multi-angle programs are supported.
• Power and footprint: Match available power supply (single/three-phase) and confirm the machine fits your shop layout and material flow.
• Controls and programmability: From mechanical stops to digital panels and CNC libraries; choose based on operator skill and part complexity.
• Safety features: Presence of emergency stops, guards, two-hand controls, and lockout points.
• Maintenance access: Ease of greasing, cleaning, and replacing pins, dies, or belts.
• Integration with workflow: Compatibility with your cutting station, tagging, and bundling practices to minimize handling.

Bring sample shapes (stirrups, U-bars, hooks) and your most demanding diameter to a demo or trial when possible. Confirm the machine’s real-world performance against your drawings and tolerances.

Setup and operation best practices

A disciplined procedure improves quality and speed while lowering rework risk. The sequence below is a practical baseline for most rotary benders:

1. Pre-check and housekeeping
   • Verify the machine is on a stable, level surface with clear access around the perimeter.
   • Confirm guards are fitted, the emergency stop works, and the work area is clean.
   • Check power connections and test a dry run without load.
2. Tooling selection
   • Choose the die/pin for the required inside bend radius; larger bars typically require larger radii.
   • Install pins securely to the specified torque; verify there is no play.
3. Angle setup
   • Set mechanical stops or program the desired angle(s). Include allowances for spring-back if needed.
   • Position back gauges so the tangent point aligns with your dimension from the bar end.
4. Material preparation
   • Cut bars to length with correct allowances for bends.
   • Remove heavy rust scale, mud, oil, or ice that could affect grip or bending consistency.
   • Mark reference points (chalk or tag) to help with hit lengths and orientation.
5. Trial bend and verification
   • Perform a test bend using scrap or a first-off piece.
   • Measure angle and inside radius; compare to the drawing. Adjust stops or dies as required.
6. Production run
   • Feed bars consistently against the gauge with steady hand pressure outside the pinch zone.
   • Use foot or two-hand controls per procedure; wait for the cycle to complete before removing the part.
   • Stack and tag finished pieces immediately to prevent mix-ups.

Achieving consistent bend quality

Consistency comes from controlling inputs and verifying outputs. Keep the following in mind:

• Die-to-bar match: Using the correct die radius for each bar diameter reduces micro-cracking and out-of-tolerance bends.
• Spring-back compensation: Some bars relax slightly after bending. Adjust stops or programs to compensate.
• Hit length accuracy: Measure from the bar end to the tangent point, not the center of the pin. Reference a standard chart for each shape type.
• Orientation control: For multi-bend parts, track the sequence and rotate the bar correctly between bends.
• In-process checks: Verify the first 3–5 pieces against the drawing, then spot-check at intervals or batch changes.

Safety essentials

Bending steel bars involves pinch, crush, and entanglement hazards. Establish clear, repeatable practices:

• Use appropriate PPE such as safety glasses, gloves suited to metal handling, and safety footwear.
• Keep hands outside the rotation path; use push sticks or designated handholds where applicable.
• Never bypass guards, interlocks, or emergency stops.
• Secure long bars with supports to prevent sudden tipping or whipping.
• Maintain a clean floor to avoid slips while controlling long stock.
• Lockout/tagout before changing dies, clearing jams, or servicing.

Maintenance and care

Routine maintenance improves reliability and preserves angle accuracy. A simple schedule can cover most needs:

• Daily: Brush debris from the table, check for bent or worn pins, and verify emergency stop function.
• Weekly: Inspect belts, chains, or couplings for tension and wear; lubricate per the manufacturer’s guidance.
• Monthly: Check gearbox oil level (if applicable), examine electrical connectors, and verify angle repeatability with a test coupon.
• Quarterly: Inspect the main shaft for play, confirm die fit tolerances, and review controller calibration.

Replace worn dies promptly. Excessive clearance or damaged surfaces can mar the bar or shift your effective bend radius, leading to cumulative errors on multi-bend parts.

Integrating with fabrication workflow

A steel bar bending machine performs best when it is one node in a smooth end-to-end process. Consider the following layout and information flow tips:

• Upstream cutting station: Place saws/cutters to feed straight bars directly to the bender with minimal handling.
• Staging and racks: Sort by diameter and heat/lot to reduce changeovers and maintain traceability.
• Bundling and dispatch: Bundle by pour or sequence, not just by shape, to support field installation order.
• Feedback loop: Capture rework causes (die selection, angle setup, handling damage) to improve future runs.

Troubleshooting common issues

• Angles off-spec
  • Re-check stop position or program value; compensate for spring-back.
  • Inspect die wear; a worn die can change effective radius and angle outcome.
  • Confirm the bar is seated firmly against the back gauge before each cycle.
• Surface scarring or bar damage
  • Use a larger-radius die or change to a smoother die surface.
  • Clean debris from the plate and guides to prevent galling.
• Inconsistent repeatability
  • Tighten pins and mounting hardware; eliminate play in the system.
  • Standardize operator technique and feed pressure.
  • Verify power supply stability; low voltage can affect motor torque.
• Bar slipping during bend
  • Remove oil/ice; ensure the contact surfaces are dry and clean.
  • Increase back-gauge pressure or adjust positioning to improve grip.
• Machine stalls or overheats
  • Confirm the bar diameter and grade are within rated capacity.
  • Allow cool-down cycles on heavy continuous work; check lubrication and drive components.

Buying vs. deploying checklist

Whether you are acquiring a new steel bar bending machine or optimizing an existing one, use these concise checks:

• Confirm the largest bar size, smallest bend radius, and peak daily volume you must support.
• Decide on manual, semi-auto, automatic, or CNC based on shape complexity and operator skill.
• Plan power, floor space, and bar flow paths, including safe handling of long stock.
• Stock the die set library that matches your common diameters and required radii.
• Create standard operating procedures with photos or sketches for your top 10 shapes.
• Schedule preventative maintenance and keep a small kit of spare pins, dies, and belts.
• Institute first-off and periodic in-process inspections to catch drift early.

FAQ: Steel bar bending machines

What bend angles are most commonly required for rebar?

Typical angles include 90° for standard corners, 135° for seismic-style hooks and stirrups, and 180° for closed ties or end hooks. Your shop drawings will specify exact angles and radii for each shape.

How do I choose the correct bend radius?

Match the die radius to the bar diameter and the detailing requirements for the part. Larger bars generally need larger inside radii to avoid excessive strain and surface defects. Keep a chart that pairs each diameter with the appropriate die.

Why do my bends spring back?

Cold-formed steel tends to relax slightly when released from the die, resulting in a small reduction in angle. Compensate by over-bending a few degrees or adjusting the programmed angle until the finished piece meets the drawing.

Should I bend before or after cutting?

Most workflows cut first, then bend. Cutting first ensures accurate hit lengths and reduces handling. Maintain clean cuts and square ends to improve measurement and fit at the bender.

What’s the simplest way to improve repeatability?

Standardize on die selections, set clear back-gauge positions, perform a first-off verification, and record minor angle compensations for each shape. Training operators to feed bars the same way every cycle also reduces variation.
