welded wire mesh slab reinforcement: selecting, detailing, and installing it right
Welded wire mesh slab reinforcement is a staple in many concrete floors, slabs-on-grade, and toppings because it provides reliable crack control and distributes loads efficiently with a repeatable, grid-based layout. Getting the most from mesh hinges on a few practical choices: selecting the right grid and wire size, detailing laps and edges clearly, supporting the mesh at the correct elevation, and coordinating delivery and handling so placement stays true to the design. This article walks through those decisions so you can align design intent, field practice, and documentation with minimal friction.
What welded wire mesh does in slabs
In concrete slabs, welded wire mesh (also called welded wire fabric) primarily serves to control crack widths from shrinkage and temperature effects and to help distribute localized loads. The mesh acts as a continuous network of steel near the tension face of the slab. When restrained shrinkage or thermal movement introduces tensile stresses, the mesh limits the opening of microcracks by sharing stresses across many wires and intersections.
Mesh is frequently used in:
- Slabs-on-grade for warehouses, retail, and light industrial floors
- Residential and commercial toppings and underlayments
- Sidewalks, driveways, aprons, and pads
- Composite metal deck toppings and similar thin slabs where a uniform reinforcement grid is desired
While mesh can contribute to flexural capacity when properly positioned, its most common role is serviceability: keeping cracks tight and promoting uniform performance across the slab.
When to choose mesh vs. rebar
Both welded wire mesh and deformed reinforcing bars are proven slab reinforcement options. The best fit depends on design requirements, constructability, and site logistics. Consider mesh if you value:
- Uniform, closely spaced reinforcement for consistent crack control
- Faster placement using sheets or rolls where access and layout permit
- Simplified field layout with a repeatable grid for control joints and penetrations
Rebar mats may be preferable when you need heavier reinforcement, complex bar schedules, significant localized strengthening, or where staggered lap strategies are essential. Many projects combine both: mesh for shrinkage and temperature control over large areas and bars for concentrated loads or edges.
Always align selection with the structural drawings and specifications. If the intent is primarily crack control, mesh often meets the need efficiently. For higher demands, consult the design professional for bar reinforcement or composite strategies.
Specifying grid size, wire size, and format
Mesh is defined by its grid spacing and wire size. Common slab configurations use a 6 inch by 6 inch grid with a specified wire gauge or diameter. Typical examples include 6″ x 6″ at nominal 6/6, 9/9, and 10/10 wire designations. The tighter the spacing and the larger the wire, the greater the steel area per square foot and the stronger the contribution to crack control and load distribution.
Key specification decisions:
- Grid spacing: 6″ x 6″ is common for slabs. Tighter grids provide more uniform restraint; wider grids reduce steel but may allow larger crack spacing.
- Wire size: Select to meet the required steel area and serviceability targets. Larger wires increase stiffness and crack control potential.
- Sheet vs. roll: Sheets typically stay flatter and are often easier to support at the correct elevation. Rolls can be efficient for long runs but need careful unrolling and re-flattening.
- Coatings and materials: Plain carbon steel is standard for interior slabs. For environments with moisture or deicing exposure, coordinate with the design professional on coatings or alternative materials.
Put the exact designation on the drawings and in the schedule. Label the grid, wire size, finish, and whether sheets or rolls are required. Call out the slab elevation for the mesh relative to the slab thickness and cover.

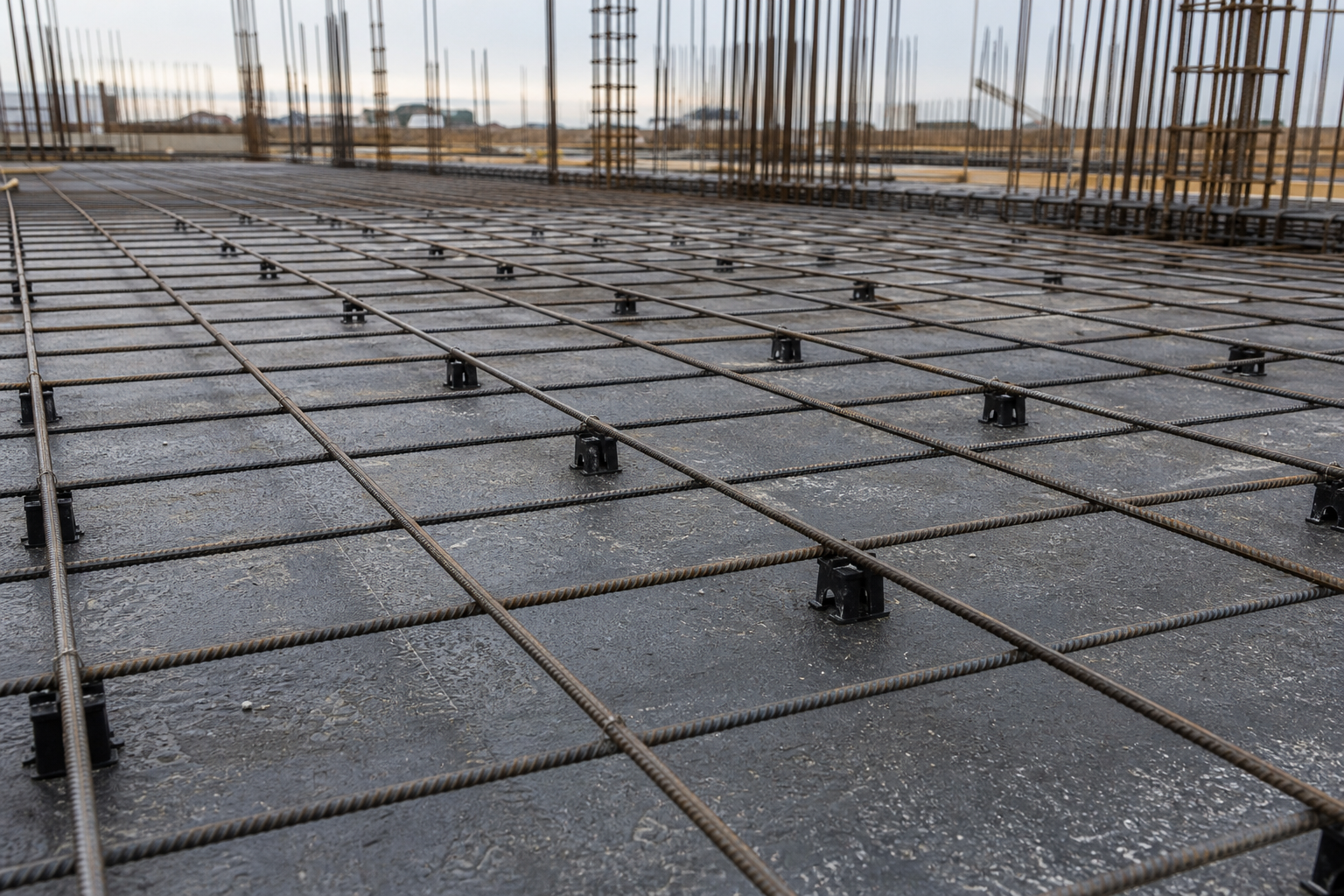

Placement elevation and concrete cover
Mesh performance depends on where it sits in the slab. For slabs-on-grade targeting shrinkage and temperature control at the top face, the mesh is commonly positioned with uniform concrete cover below the finished surface as shown on the drawings. If the mesh sinks during placement, its contribution diminishes.
Good practice to help maintain elevation:
- Use appropriate supports sized to the specified cover and spaced closely enough to prevent sagging between supports.
- Avoid relying on raking or “hooking” mesh up during concrete placement. Plan for supports that hold the correct height before and during the pour.
- Minimize foot traffic and equipment loading on unsupported mesh; where traffic is unavoidable, increase support density.
- Coordinate placement sequencing so vibrators and screeds do not pull mesh off supports.
Confirm cover and mesh position during pre-pour inspections and early in the pour. Adjust support type or spacing if you see movement.
Laps, edges, openings, and joints
Clear detailing prevents weak spots and field rework. Address the following on the drawings and pre-pour plans:
- Lap seams: Indicate lap length and orientation. Staggered laps reduce localized stiffness changes and help maintain uniform steel distribution.
- Perimeter edges: State whether you require additional reinforcement or trimmed mesh at slab edges, sawcut joints, and construction joints to maintain the intended steel area.
- Openings and penetrations: Provide clear instructions for trimming panels and any supplemental reinforcement around sleeves, drains, or blockouts.
- Control and construction joints: Coordinate joint layout with the mesh grid to avoid cutting out excessive steel. Where cuts are required, show how continuity is restored or how joints are isolated.
Field crews benefit from shop-level sketches that show panel seams, stagger direction, and where to place trimmed pieces, especially in irregular bays or near complex edges.
Handling, storage, and safety
Mesh arrives as flat sheets or compact rolls. Plan the logistics route and laydown to reduce bending, kinks, and unnecessary handling:
- Store on level dunnage to keep sheets flat and separated from ground moisture.
- Stage panels close to the pour area to minimize dragging; lift cleanly where possible.
- Unroll rolls carefully, re-flatten, and restrain edges until supported.
- Use appropriate gloves and eye protection; cut wire ends can be sharp.
Review the site-specific safety plan and coordinate with the concrete contractor’s sequence so reinforcement placement and finishing crews work efficiently without conflict.
Coordination with concrete operations
Mesh placement intersects closely with subgrade prep, vapor barriers, dowels, and pour sequencing. Before the pour, confirm:
- Subbase and vapor barrier conditions are ready and consistent with the specified support type.
- Panel layout matches bay dimensions and seam locations won’t interfere with screed routes.
- Reinforcement elevation supports are compatible with finishing methods and do not puncture barriers.
- Routes for pump lines or buggies avoid pushing mesh out of position.
During placement, assign someone to watch mesh elevation and seams while concrete is placed and vibrated. Early corrections prevent widespread rework.
Estimating, takeoff, and waste
A solid takeoff reduces change orders and last-minute substitutions. A straightforward approach is to map the slab into panel-sized zones and count full panels first. Then address strips and irregular areas with trimmed pieces. Account for overlaps and any required staggering pattern.
Practical estimating tips:
- Lay out panels on a plan scaled to panel size; count full sheets before adding cuts.
- Include allowances for laps based on the specified lap length and seam frequency.
- Note obstacles and openings that reduce coverage or require additional trimming.
- Round up to accommodate on-site adjustments and unexpected waste from damage or field changes.
When schedules are tight, confirm lead times and packaging (bundles, pallet sizes) early so site access and crane or forklift capacity are aligned with delivery constraints.
Quality checklist: before, during, and after the pour
Use this concise checklist to keep welded wire mesh slab reinforcement aligned with design intent:
- Before:
- Verify the specified grid and wire size match submittals and delivery tags.
- Confirm support type and spacing achieve the required cover.
- Lay out panels, seam locations, and staggering pattern on plans.
- Pre-stage panels to minimize dragging and bending.
- During:
- Monitor mesh elevation continuously; add supports where sagging appears.
- Keep seams tight and laps consistent with the drawings.
- Protect vapor barriers and avoid displacing supports during placing and screeding.
- After:
- Spot-check cover at accessible edges or test locations.
- Document any deviations and coordinate remedies per the design professional.
Common field issues and how to avoid them
Even simple mesh installations can drift off track without attention to detail. Watch out for:
- Mesh sinking to the bottom: Occurs when supports are too sparse or raked during placing. Solution: increase chair density and choose support types that resist movement under foot traffic and vibration.
- Inconsistent laps: Short laps or misaligned seams reduce continuity. Solution: pre-mark seam lines and assign a checker to verify length and stagger.
- Wrinkles and kinks: More common with rolls. Solution: unroll methodically, re-flatten, and secure edges before setting final elevation.
- Barrier damage: Chairs or wire ends can puncture vapor barriers. Solution: confirm compatible chair feet and trim sharp edges at contact points.
- Interference with joints: Cutting mesh out at sawcut locations without compensating can reduce steel area. Solution: coordinate joint layout with the grid and show how continuity is maintained where needed.
Documentation that helps everyone
Clear documents keep estimating, procurement, and field crews aligned. Consider including:
- A reinforcement schedule listing mesh designation, format (sheet/roll), finish, and quantity by area
- Panel layout drawings with lap/stagger directions and seam lines
- Edge and opening details showing trim pieces and any supplemental steel
- Support type, spacing, and required cover
Simple visual aids—like colored seam lines on plans—often save hours in the field and reduce RFIs about overlaps or elevation.
Selecting a mesh designation: examples
For typical interior slabs requiring general crack control, many teams consider a 6″ x 6″ grid with wire sizes selected to meet project criteria. Common designations include 6″ x 6″ at nominal 6/6, 9/9, and 10/10. The right choice depends on slab thickness, joint spacing strategy, expected shrinkage, and load distribution needs.
Coordinate with the design professional to match mesh area to the slab’s performance goals. If exposure conditions or durability targets warrant, discuss coating options or alternative reinforcement types shown in the specifications.
FAQs
Where should welded wire mesh sit within a slab?
Follow the structural drawings. For crack control at the top surface, mesh is typically supported to maintain uniform cover below the finished surface. If mesh settles too low, it is less effective. Use compatible supports and verify elevation during the pour.
Is welded wire mesh enough on its own for structural capacity?
Mesh commonly addresses serviceability—primarily shrinkage and temperature—rather than major flexural capacity. Where higher strength or localized reinforcement is required, the design may call for deformed bars in addition to or instead of mesh. Always defer to the project engineer’s design.
Should I order sheets or rolls?
Sheets often stay flatter and are straightforward to support at elevation, which many crews prefer for slab work. Rolls can be efficient in long, unobstructed runs but require careful unrolling and re-flattening. Consider site access, bay size, and finishing methods when choosing.
How do I account for laps in my quantity takeoff?
Lay out panels by bay, count full sheets first, and then add strips for edges. Apply the specified lap length at each seam line and include a small contingency for field trimming and damage. Clear seam diagrams on the plans reduce over- or under-ordering.
What are common welded wire mesh grid and wire size examples?
A widely used pattern for slabs is a 6″ x 6″ grid with wire sizes chosen for the project’s serviceability goals. Common examples include nominal 6/6, 9/9, and 10/10 wire designations at that spacing. Confirm the exact designation in the specifications and submittals.
