How to Evaluate an ALLPLAN Rebar Detailing Workflow

How to Evaluate an ALLPLAN Rebar Detailing Workflow

ALLPLAN rebar detailing is a software-enabled workflow, not a promise that a model will automatically produce approved fabrication information. A reliable process still needs complete engineering inputs, agreed modelling rules, bar-mark governance, constructability review, controlled revisions, checked drawings and schedules, and a clear handoff to fabrication and placement.

Short answer: evaluate the workflow from input to field use. Confirm the issued structural information, model-authoring responsibilities, reinforcement and naming conventions, required drawings and schedules, approval stages, file exchanges, revision controls, quality checks and fabrication handoff. Pilot a representative element before committing the whole project, and never infer that a service provider uses ALLPLAN unless it confirms that fact.

Dass Rebar’s site says it offers detailing and uses advanced software, but the reviewed first-party pages do not name ALLPLAN. This guide therefore explains how a buyer can evaluate an ALLPLAN-based workflow generally and what to ask any detailing provider. It does not represent Dass Rebar’s current software, licence, version, staff capability or deliverables.

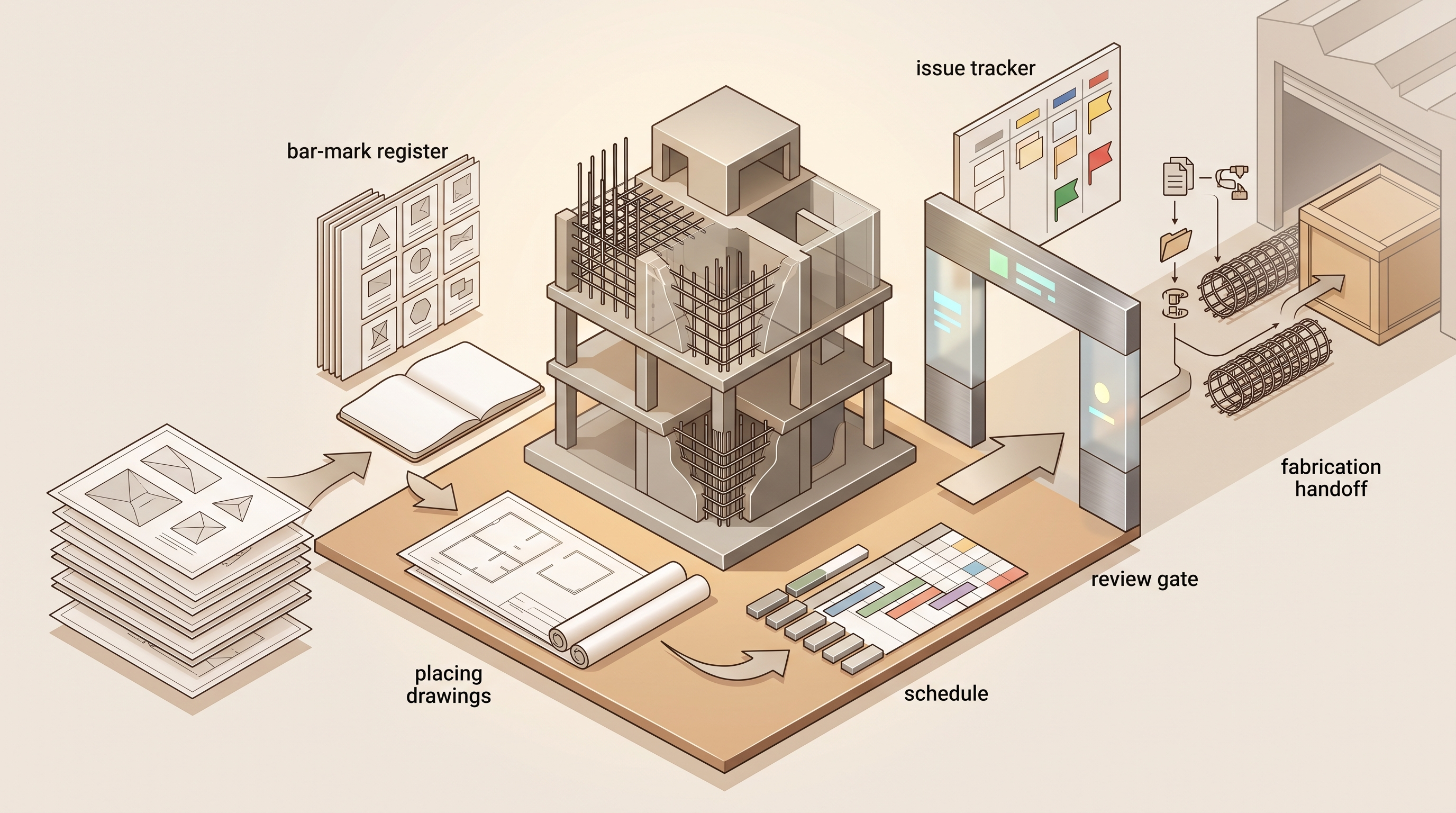

Rebar detailing team evaluating model inputs bar marks drawings schedules reviews and fabrication handoff
Judge an ALLPLAN workflow by controlled information flow and checked deliverables, not by software name alone.

Define the information that starts the model

Rebar detailers interpret the engineer’s structural drawings and specifications to create practical placing information. ALLPLAN’s own introduction distinguishes detailing from structural engineering: the engineer determines required reinforcement, while the detailer converts the design information into drawings and data used by fabrication and field teams.

Input Question to close Owner
Structural drawings Which issue and revision govern? Design team/document controller
Specifications Which materials, standards, cover and detailing rules apply? Engineer/specifier
Architectural model Which dimensions and openings may be relied upon? Architect/model manager
Trade models Which penetrations, embeds and clearances are coordinated? Coordination team
Fabrication rules Which bend, stock, machine and tag conventions are required? Fabricator
Deliverable standard Which sheets, lists, files, naming and approval stages are required? Contract/project execution plan

Define what happens when an input is missing or conflicting. The workflow should generate a request for information and hold the affected scope, not fill an engineering gap with a modeller’s assumption.

Set modelling and bar-mark rules before production

ALLPLAN publishes tools for 2D and 3D reinforcement modelling, sections, schedules and quantity information. Features can support the process, but the project team must still establish conventions. Decide coordinate origin, model breakdown, object naming, bar marks, phase or pour zones, revision status, concrete geometry ownership and shared-file exchange.

  1. Create a project template with units, layers, attributes and naming.
  2. Model one representative beam, column, wall, slab and congested interface as applicable.
  3. Define when a shape receives a new mark and how marks remain stable.
  4. Set rules for couplers, embeds, openings, laps and construction joints from project information.
  5. Document what is modelled and what remains 2D annotation.
  6. Approve the pilot output before scaling the workflow.

A software default is not a project requirement. Cover, spacing, hook, lap, bend, material and design inputs must trace to approved sources. Record custom content and office templates so another qualified team member can audit the model.

Specify the deliverables and their authority

A 3D reinforcement model can support coordination and extraction, but construction may still rely on approved placing drawings, bar lists and schedules. Define the contractual deliverable, review format and fabrication interface. State whether native files, IFC, PDF, DWG, BCF, spreadsheets, machine data or another format is required and which version or exchange settings apply.

Output Purpose Acceptance question
Reinforcement model Visualize bars and coordinate geometry Does it contain the agreed scope and attributes?
Placing drawings Communicate placement by element and sequence Are views, marks, dimensions and notes readable?
Bar list or schedule Support quantity and fabrication information Do marks, shapes, dimensions and revisions match?
Issue register Track RFIs, holds and decisions Are unresolved items visible before release?
Exchange file Coordinate with another platform or stakeholder Has a round-trip or import test been completed?
Revision package Explain added, changed and cancelled work Can fabrication and site teams isolate the delta?

ALLPLAN’s current features and packages change, so verify required capabilities, exports, subscription level and regional content directly with ALLPLAN. Do not promise a file or automation from an old brochure.

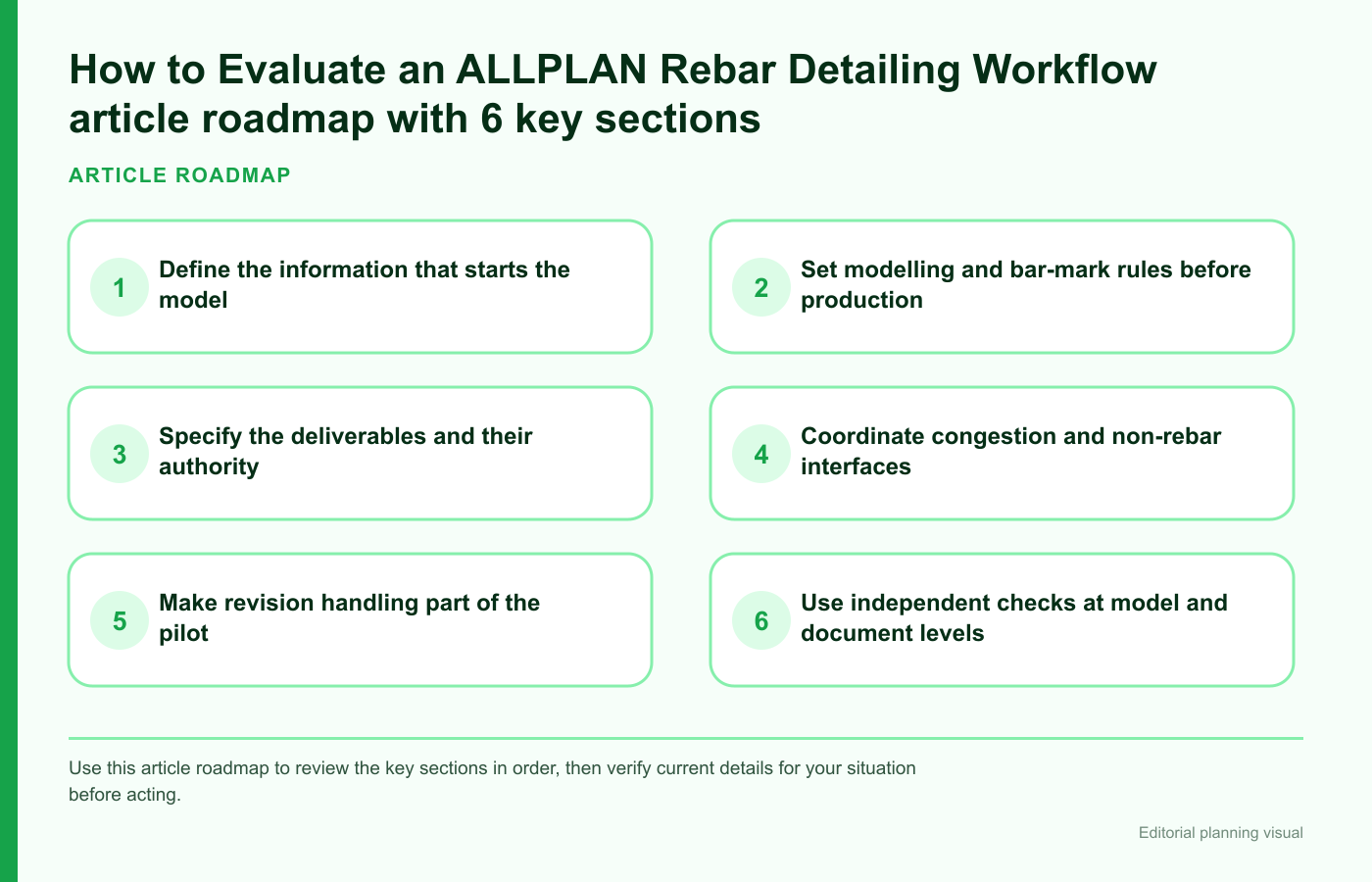

ALLPLAN rebar detailing evaluation flow from issued inputs through model drawings checks approvals fabrication and site
A useful pilot tests the same information path the live project will use, including revisions and handoffs.

Coordinate congestion and non-rebar interfaces

Three-dimensional modelling can make congestion and geometry conflicts easier to see, but a clash result is not an engineering decision. Define which models are current, which categories are checked, what clearance rules are used and who resolves each issue. Track an opening, embed or bar change to the responsible designer and approved revision.

Prioritize beam-column joints, wall boundaries, slab openings, couplers, post-tensioning interfaces, embedded plates, major sleeves and construction joints as applicable. Review erection and placement sequence, not only the final geometry. Bars that fit in a static model may still be difficult to fabricate, ship, lift, place or concrete around.

Make revision handling part of the pilot

Do not evaluate only a clean first issue. Change a representative design input and observe how the model, drawings, schedules, marks and exchange files respond. The team should be able to identify affected elements, preserve unaffected approved work and communicate additions, changes and cancellations.

  1. Receive and register the new source document.
  2. Compare it with the previous issue and define affected scope.
  3. Place impacted work on hold where required.
  4. Update the model under change control.
  5. Run model, drawing and schedule checks.
  6. Issue a revision narrative and marked change set.
  7. Obtain review before fabrication or site use.

Agree who controls bar marks after approval. Renumbering may disrupt fabrication, tags and site records even if the geometry remains correct.

Use independent checks at model and document levels

Automation reduces some repetitive work but can reproduce a wrong input consistently. Quality control should combine model queries, visual review, schedule reconciliation, drawing checks and comparison with the structural design. The checker should have sufficient independence and access to the same source register.

Check Example question Record
Input Are all source revisions current and approved for use? Document register
Geometry Do concrete elements and openings match the controlled source? Model check report
Reinforcement Do bars trace to design information without silent changes? Element checklist
Constructability Can bars be fabricated, delivered and placed in sequence? Review comments and resolutions
Drawings Are marks, views, dimensions and notes unambiguous? Checked sheet set
Schedules Do quantities and marks reconcile with the approved model? Signed check log
Pilot pass condition: the team can reproduce the approved output, process a change, exchange the required files and trace every fabrication field to a controlled source.

ALLPLAN workflow red flags and common mistakes

  • Buying a software name instead of a service scope: define inputs, outputs, reviews and responsibilities.
  • Assuming the provider uses ALLPLAN: obtain written confirmation of platform, version and capability.
  • Letting defaults become design: every technical value needs an approved source.
  • Skipping the exchange test: a file extension does not guarantee usable data.
  • Testing only the first issue: revisions expose mark and document-control weaknesses.
  • Treating clash detection as approval: route changes through design responsibility.
  • Checking only the model: drawings, schedules and fabrication data also require review.
  • Promising automatic savings: outcomes depend on team, setup, inputs and project use.
Professional boundary: detailing software and detailers do not replace the responsible structural design. Reinforcement size, spacing, cover, laps, hooks, material, connections and code compliance remain governed by the project documents and required professional approval.

Frequently asked questions

Does Dass Rebar use ALLPLAN?

The reviewed first-party pages say the company offers detailing with advanced software but do not identify ALLPLAN. Confirm its current tools and workflow directly before relying on that assumption.

Can ALLPLAN automatically approve reinforcement?

No. Software can model, document and help check information, but project design and approval responsibilities remain with the designated professionals and process.

Should the 3D model be the only deliverable?

Only if the contract and all downstream users support that method. Many workflows still require controlled drawings, schedules and records.

What is the best pilot element?

Choose a representative element with typical reinforcement, one congested interface, a required schedule and a realistic revision so the whole information path is tested.

Run a representative workflow pilot before full production

Score the pilot on input completeness, model rules, drawing readability, schedule reconciliation, exchange quality, revision handling, response to RFIs and fabrication handoff. Record limitations and owners before scaling.

Next step: review Dass Rebar’s detailing service section and fabrication information, then use the official contact page to confirm current software, versions, input requirements, deliverables, checking process, exchange formats, exclusions and capacity in writing.
