Concrete Rebar Guide for Ontario: Choose, Detail, and Place

Last updated: October 2026

Concrete rebar is often treated as a material-ordering task, but it is also a design-coordination and site-sequencing decision. A bar that is available can still create problems if it arrives in the wrong length, is difficult to place around embeds, or cannot maintain the specified cover during a pour.

This guide is for developers, general contractors, concrete contractors, site supervisors, estimators, and inspectors working in Ontario. It explains how reinforcement functions, how teams compare common options, how 10M, 15M, and 20M bars are typically selected, and how a rebar supplier in Ontario can support a project from takeoff through assembly.

Dass Rebar operates from 370 New Enterprise Way in Woodbridge and supports residential, commercial, and infrastructure work throughout Ontario with estimating, detailing, fabrication, delivery, project management, and on-site assembly. The company maintains commonly used reinforcement products and operates a dedicated trucking fleet.

What concrete rebar does inside a structure

Concrete performs well in compression but is comparatively weak in tension. Concrete rebar, also called reinforcing steel or steel reinforcement for concrete, is embedded where tensile stresses develop so the concrete and reinforcement act as a composite system.

Deformed bars have ribs that create a mechanical bond with surrounding concrete. That bond transfers force between concrete and steel, while development length, lap splices, hooks, mechanical connections, cover, and confinement help maintain continuity through the structural element.

Three performance benefits of reinforcement

  • Tension resistance: Reinforcement carries tensile force after cracking begins and supports the intended load path.
  • Crack control: Distributed steel limits crack spacing and width under service loads when design and placement are correct.
  • Ductility and continuity: Properly anchored bars help a slab, wall, beam, footing, or column respond in a more controlled way than plain concrete alone.

Rebar does not make an under-designed structure safe by itself. Bar size, grade, spacing, location, splice length, concrete strength, cover, and exposure class must be coordinated with the engineer’s drawings and project specifications. The reinforcement supplier and detailer can help translate those requirements into buildable material, but they do not replace the design authority.

Reinforcement also affects construction quality. A cage that is theoretically adequate but too congested for concrete placement can create voids, poor consolidation, or cover problems. Constructability should therefore be reviewed while drawings and bar lists are being prepared, not after bundles reach the site.

How to choose the right reinforcement type

The correct reinforcement depends on structural demand, exposure, installation constraints, electromagnetic requirements, and the project specification. A material that works well in an interior foundation may not be the best choice for a parking structure exposed to deicing salts.

Common reinforcement options and their decision factors
Option Typical application Primary benefit Important check
Black steel rebar Foundations, slabs, beams, walls, and columns Versatile, strong, and widely used Maintain specified cover and exposure protection
Epoxy-coated rebar Parking structures, decks, and chloride-exposed elements Delays corrosion initiation Protect the coating and repair damaged areas as specified
GFRB or GFRP bars Corrosive, non-magnetic, or electrically sensitive environments Non-corrosive and lightweight Use a composite-bar design, not a direct steel substitution
Welded wire mesh Slabs, toppings, sidewalks, and distributed reinforcement Consistent factory-welded spacing and faster placement Confirm sheet orientation, support, and lap requirements

Black steel reinforcement

Uncoated carbon-steel rebar is a common choice for general reinforced-concrete construction. It is suitable where the design provides the required cover and exposure does not call for an additional corrosion-protection system. Bars must remain free from contaminants that could compromise bond, and excessive rust, damage, or contamination should be assessed against the project requirements rather than accepted automatically.

Ontario projects may specify Grade 400W or Grade 500W steel. The grade is not an informal purchasing preference: it affects the design assumptions, bar schedules, material records, and approvals. Confirm the specified grade before releasing a purchase order, especially where a project has been revised from one grade to another.

Epoxy-coated reinforcement

Epoxy-coated rebar can be appropriate where chlorides from deicing salts, splash, or another aggressive exposure could accelerate corrosion. It requires careful loading, unloading, bending, storage, and placement because coating damage can reduce the intended protection. The project specification should govern approved repairs, tie materials, supports, and handling methods. See the epoxy-coated rebar handling guide for a focused discussion.

GFRB and welded wire mesh

Glass fibre reinforcing bars do not corrode like steel and are non-magnetic, but they have different stiffness, bond, development, and anchorage characteristics. They should be specified and detailed as a composite reinforcement system. Welded wire mesh is useful where regularly spaced distributed reinforcement is required, but it still needs correct support, laps, orientation, and concrete placement.

Dass Rebar supplies welded wire mesh in standard configurations including 6 by 6 at 6/6, 9/9, and 10/10 gauges. For mesh selection, the welded wire mesh options guide explains what those configurations mean and where they may be used.

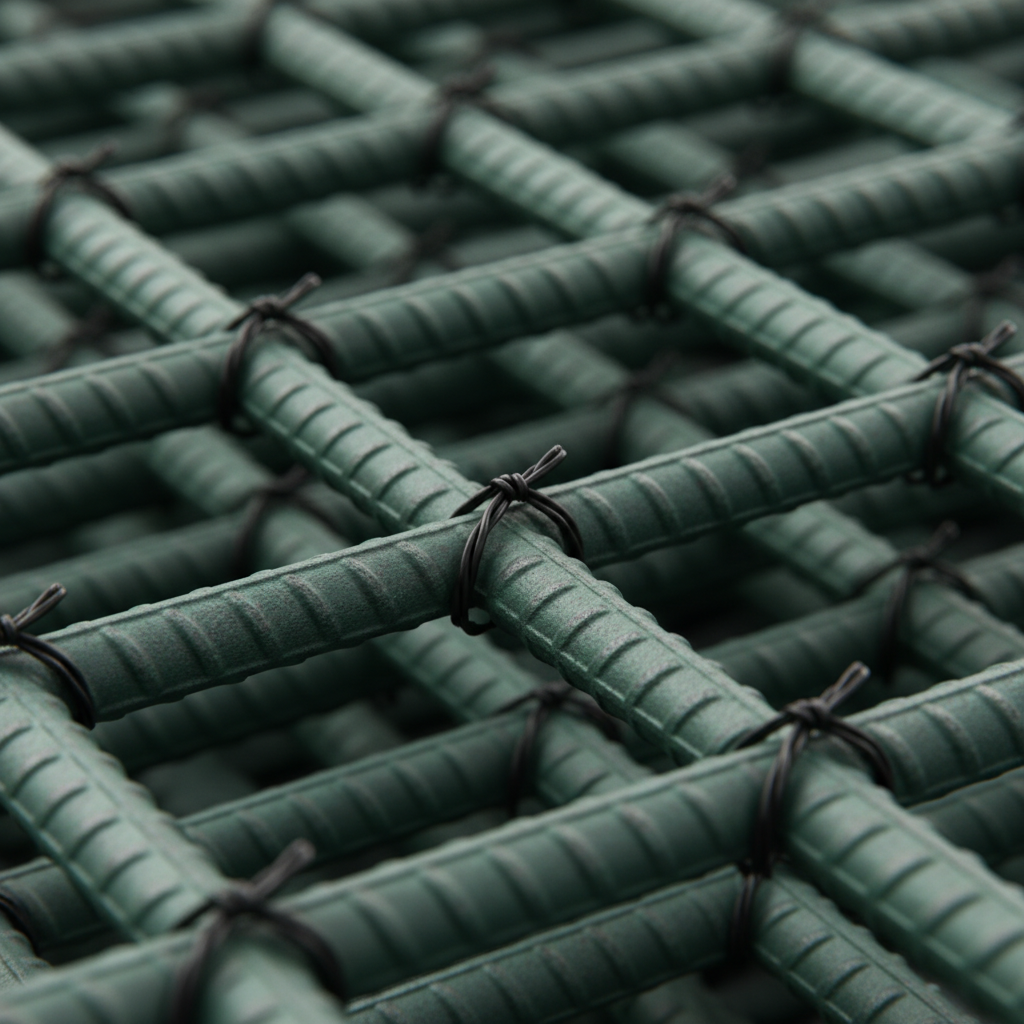

Ribbed epoxy-coated rebar tied into a reinforcement mat beside concrete formwork

How to select 10M, 15M, and 20M concrete rebar

Bar size should be selected from the structural design, not from a general rule that assigns one size to every slab or wall. The design team balances required steel area, spacing, crack control, development length, cover, congestion, forming space, and the ability to place and consolidate concrete.

Typical planning uses for common metric bar sizes
Bar size Planning context Constructability question
10M Many slab, step, light wall, and temperature-shrinkage applications Can spacing provide the required steel area and crack distribution?
15M Walls, footings, moderate beams, and heavier distributed reinforcement Can laps, corners, openings, and supports be placed without congestion?
20M Higher-force zones or designs using fewer, larger bars Will diameter, bend radius, development, and vibrator access work?

These are planning descriptions, not design substitutions. A 10M bar cannot be exchanged for a 15M bar simply because both are available, and reducing the number of bars can change crack control and spacing. Any substitution should be reviewed and approved through the project’s design and change-control process.

What to check before ordering a bar size

  • Confirm the latest structural drawings, bar marks, schedules, revisions, and specification.
  • Check whether the design calls for 400W, 500W, epoxy-coated steel, GFRB, or another specified product.
  • Review cover, lap, splice, hook, bend, and development requirements for the element.
  • Look for congestion at beam-column joints, wall intersections, openings, embeds, sleeves, and anchor groups.
  • Confirm that the selected size can be fabricated, transported, lifted, tied, and inspected in the planned sequence.

For example, a slab may use regularly distributed 10M reinforcement, while a footing or wall may require 15M bars to achieve the specified area at practical spacing. A 20M bar may reduce the number of bars in a higher-force zone, but its larger diameter can increase congestion at laps, corners, and supports. The dedicated 10M rebar guide for Ontario projects provides additional context for common 10M applications.

How to detail and estimate concrete rebar before the pour

Rebar detailing converts design intent into placing drawings, bar lists, schedules, bend shapes, marks, quantities, and installation information. Good detailing makes reinforcement buildable; it does not merely reproduce lines from a structural plan.

Start with a controlled drawing set

Before a takeoff begins, identify the current architectural, structural, civil, and mechanical information that affects reinforcement. Record drawing numbers, revisions, issue dates, exclusions, and assumptions. A controlled transmittal prevents a fabricator, installer, and inspector from working from different versions.

Review penetrations, sleeves, anchor bolts, waterstops, construction joints, embeds, post-tensioning zones, and waterproofing interfaces early. These items frequently determine where bars can be placed and whether a cage can be assembled in the intended order.

Build the takeoff by element and pour

A useful takeoff separates bars by footing, grade beam, wall, column, beam, slab, level, grid, and pour sequence. It should account for straight lengths, bends, hooks, laps, mechanical connections, stirrups, ties, mesh sheets, chairs, spacers, tie wire, and handling requirements. Quantities should be traceable to bar marks so a shortage can be investigated quickly.

  • Scope: Confirm whether reinforcement accessories, mesh, chairs, couplers, and installation are included.
  • Geometry: Check openings, steps, thickened slabs, recesses, ramps, pile caps, and irregular edges.
  • Interfaces: Coordinate embeds, sleeves, anchor bolts, waterproofing, post-tensioning, and mechanical penetrations.
  • Phasing: Split quantities into deliverable bundles that reflect crane capacity, laydown space, and pour dates.

Early estimating is particularly useful when a project has repeated floors or multiple housing blocks. The rebar supply planning guide covers procurement, staging, and coordination decisions that help prevent a site from receiving material faster than it can use it.

Design for installation, not just quantity

Two options can contain a similar steel area but have very different installation risks. Closely spaced small bars may be difficult to tie and consolidate, while fewer large bars may create congestion at laps and supports. Detailers should show chairs, spacers, supports, lap locations, bar sequencing, and access for concrete placement where those details affect the work.

When an apparent conflict is found, do not solve it by cutting, heating, bending, or relocating bars in the field without authorization. Issue an RFI or revised detail, obtain the required approval, and communicate the change to fabrication and installation teams. The rebar detailing guide offers additional context on coordinating drawings and installation information.

How fabrication, delivery, and assembly affect the schedule

Fabrication and logistics are part of the reinforcement system. Accurate cut-and-bend work, readable marks, protected bundles, and timed deliveries reduce sorting and keep crews productive during a narrow pour window.

Fabrication controls

  • Fabricate from approved, clearly identified drawings and bar schedules.
  • Verify bar grade, diameter, bend shape, hook dimensions, lengths, and quantities before bundling.
  • Keep bar marks and bundle tags legible from receiving and staging areas.
  • Handle coated products in a way that avoids unnecessary impact, dragging, and coating damage.
  • Separate bundles by level, grid, pour, or installation sequence where the site benefits from staged delivery.

For a detailed overview of cut-and-bend workflows, review the Ontario rebar fabrication guide. Fabricators commonly process reinforcement in accordance with CSA requirements, structural drawings, and project specifications; the approved project documents govern where they differ from general practice.

Delivery planning from Woodbridge to the jobsite

Delivery plans should account for truck access, municipal restrictions, crane or telehandler availability, unloading sequence, weather, laydown space, and the time required to distribute bundles. A truck that arrives before the site can safely unload may create as much disruption as a late truck.

For work coordinated from Woodbridge and the GTA, confirm the site’s access window, turning restrictions, staging area, contact person, and lifting plan in advance. On larger Ontario projects, separate deliveries by pour and level rather than treating the entire order as one undifferentiated shipment. This reduces double-handling and makes it easier for the foreman to identify missing or damaged material.

Assembly and placement

Installers should work from the current placing drawings and identify each bar mark before tying. Chairs, bolsters, spacers, supports, and tie patterns must hold reinforcement in its designed position during worker traffic, concrete discharge, vibration, and finishing.

Assembly should also preserve access for concrete placement. If bars are so tightly packed that a vibrator cannot reach the concrete, the issue needs to be resolved through the approved design process before the pour. Field improvisation can affect cover, anchorage, bond, and inspection acceptance.

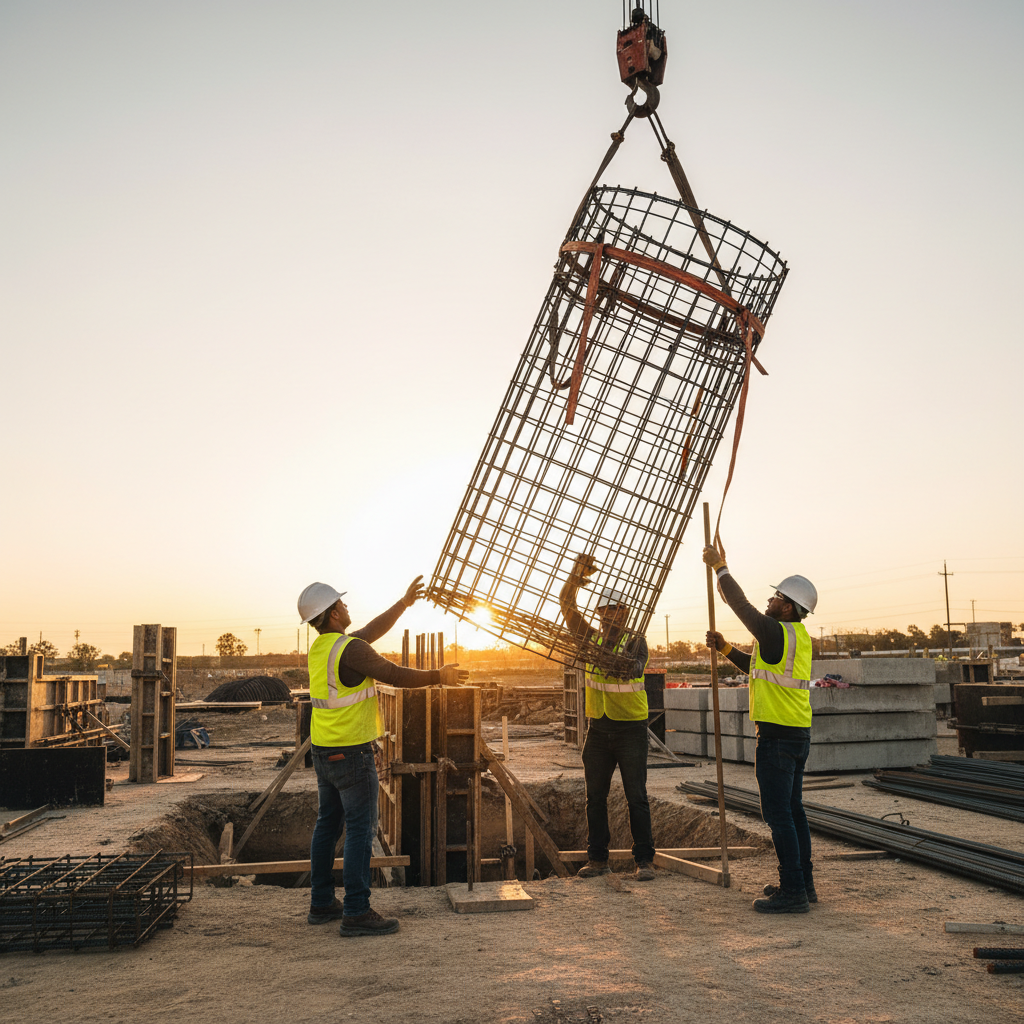

Crew guiding a tied concrete column rebar cage into position while checking alignment

Quality checks and Ontario requirements

Ontario reinforcement work is governed by the project’s design documents, applicable code requirements, material standards, and specifications. The current 2024 Ontario Building Code Compendium brings together the Building Code and related materials. For applicable residential provisions, the code identifies CSA G30.18 for carbon-steel reinforcement; project teams should confirm which provisions apply to their building and structural system.

The provincial Ontario Building Code information page directs users to the current code resources. For a described residential application, the applicable Ontario regulation includes requirements relating to reinforcement, yield strength, and lap lengths. These examples do not establish a universal lap rule: the project drawings, engineering requirements, exposure conditions, and applicable code provisions control.

Transportation and infrastructure projects may also invoke Ontario Provincial Standard Specifications. OPSS.PROV 905 addresses placement of steel reinforcement and mechanical connections for concrete structures. MTO consultation material concerning OPSS 905 updates and the related OPSS 905 and OPSS 1440 update should be read alongside the contract documents, issued specifications, and special provisions.

For broader Canadian detailing practice, the Reinforcing Steel Institute of Canada provides industry resources, and its fabricator guidance describes the role of cutting, bending, detailing, bundling, and supplying reinforcement in accordance with drawings and standards. These resources support coordination but do not replace project-specific direction.

Pre-pour reinforcement checklist

  • Verify the latest drawing revision, bar marks, sizes, grades, spacing, and orientation.
  • Measure cover using suitable chairs, spacers, and supports for the element and exposure.
  • Check laps, hooks, development lengths, mechanical connections, and anchorage against approved details.
  • Confirm bars are tied securely enough to resist workers, concrete discharge, and vibration.
  • Inspect epoxy coating or other protective systems for damage and follow the specified repair procedure.
  • Check openings, sleeves, embeds, anchor bolts, waterstops, and construction joints for clashes.
  • Remove mud, excessive debris, standing water, loose tie wire, and materials that could affect placement or bond.
  • Record inspection comments and photographs, then close unresolved items before concrete placement.

Common mistakes that cause rework

Frequent problems include using superseded drawings, placing mesh below its intended position, omitting chairs, allowing bars to shift against formwork, cutting bars around an uncoordinated penetration, and accepting an unapproved substitution. Another avoidable issue is delivering bundles without clear marks, forcing crews to sort material beside an active pour.

Exposure also matters. Freeze-thaw cycles and deicing salts can increase durability demands, but the response must come from the design and specification: adequate cover, concrete quality, drainage, coating, or a specified composite reinforcement system may all play a role. No single product eliminates the need for sound detailing and placement.

Local planning considerations for Ontario projects

Projects coordinated from 370 New Enterprise Way in Woodbridge may serve sites across the GTA and elsewhere in Ontario, so logistics should be planned around the actual destination rather than a generic delivery schedule. Rush-hour traffic, narrow urban access, limited laydown, winter conditions, and crane availability can all affect the best delivery sequence.

A Woodbridge-based project team may support work in Toronto, Waterloo, Pickering, and other Ontario municipalities, but each site still has its own access rules, inspection timing, storage limits, and lifting constraints. Confirm those details before assigning a delivery date. Seasonal planning should account for wet ground, frozen material, reduced daylight, and the effect of weather on unloading and assembly.

Dass Rebar’s confirmed project portfolio includes The Hawthorne Residences in Toronto, Hickory Terraces in Waterloo, and The Grand at Universal City in Pickering. Those project names illustrate the range of residential and development work the business supports, but they do not replace project-specific engineering, inspection, or scheduling requirements.

For seasonal procurement, teams can review the summer rebar stocking guidance and compare it with actual release dates, storage capacity, cash-flow plans, and the approved construction schedule. Buying earlier is useful only when drawings are sufficiently stable and the site can protect and manage the material.

Foundations deserve particular attention because bars interact with formwork, waterproofing, anchor systems, grade beams, and soil conditions. Use the foundation rebar detailing guide as a coordination aid, while relying on the project engineer for required dimensions, laps, cover, and structural decisions.

Concrete rebar FAQ

What is concrete rebar used for?

Concrete rebar carries tensile forces, controls cracking, and helps concrete elements maintain their intended strength and ductility. It must be placed at the designed location with the specified cover, spacing, anchorage, and splice details.

Is 10M, 15M, or 20M rebar best for a slab?

There is no universally correct slab size. The engineer selects bar size and spacing based on required steel area, crack control, loads, span, cover, and constructability. 10M may be common in some slab applications, but it should not replace a specified size without approval.

When is epoxy-coated rebar appropriate?

Epoxy-coated rebar may be specified where chloride exposure or another aggressive environment increases corrosion risk, such as some parking or deck applications. It still requires the specified concrete cover and careful handling so the coating is not damaged during fabrication, transport, or placement.

Can GFRB replace steel rebar?

GFRB can be suitable where corrosion resistance, low weight, or non-magnetic performance is required, but it is not a direct one-for-one replacement for steel. The design must account for its different stiffness, bond, development, anchorage, and serviceability behaviour.

What should be checked before concrete placement?

Check the current drawings, bar size and spacing, cover, laps, hooks, supports, ties, openings, embeds, mesh orientation, coating condition, and access for concrete placement and vibration. Record the inspection and resolve discrepancies before the pour begins.

Plan the reinforcement before the pour

Concrete rebar performs as intended when design information, material selection, detailing, fabrication, delivery, and site placement remain coordinated. Choose reinforcement from the project requirements, select 10M, 15M, or 20M bars only through the approved design, stage bundles by pour, and use a documented pre-pour inspection to protect cover and position.

For an Ontario project requiring estimating, detailing, fabrication, delivery, or on-site assembly, contact Dass Rebar to discuss the drawings, phasing, access conditions, and reinforcement schedule before material is released.
