FABRICATION
Raising The Bar On Quality & Service
Dass Rebar offers grade 400W Rebar in the following diameters:
10m, 15m, 20m, 25m, 30m, 35m (45m and 55m on request)
Dass Rebar stocks the following material :

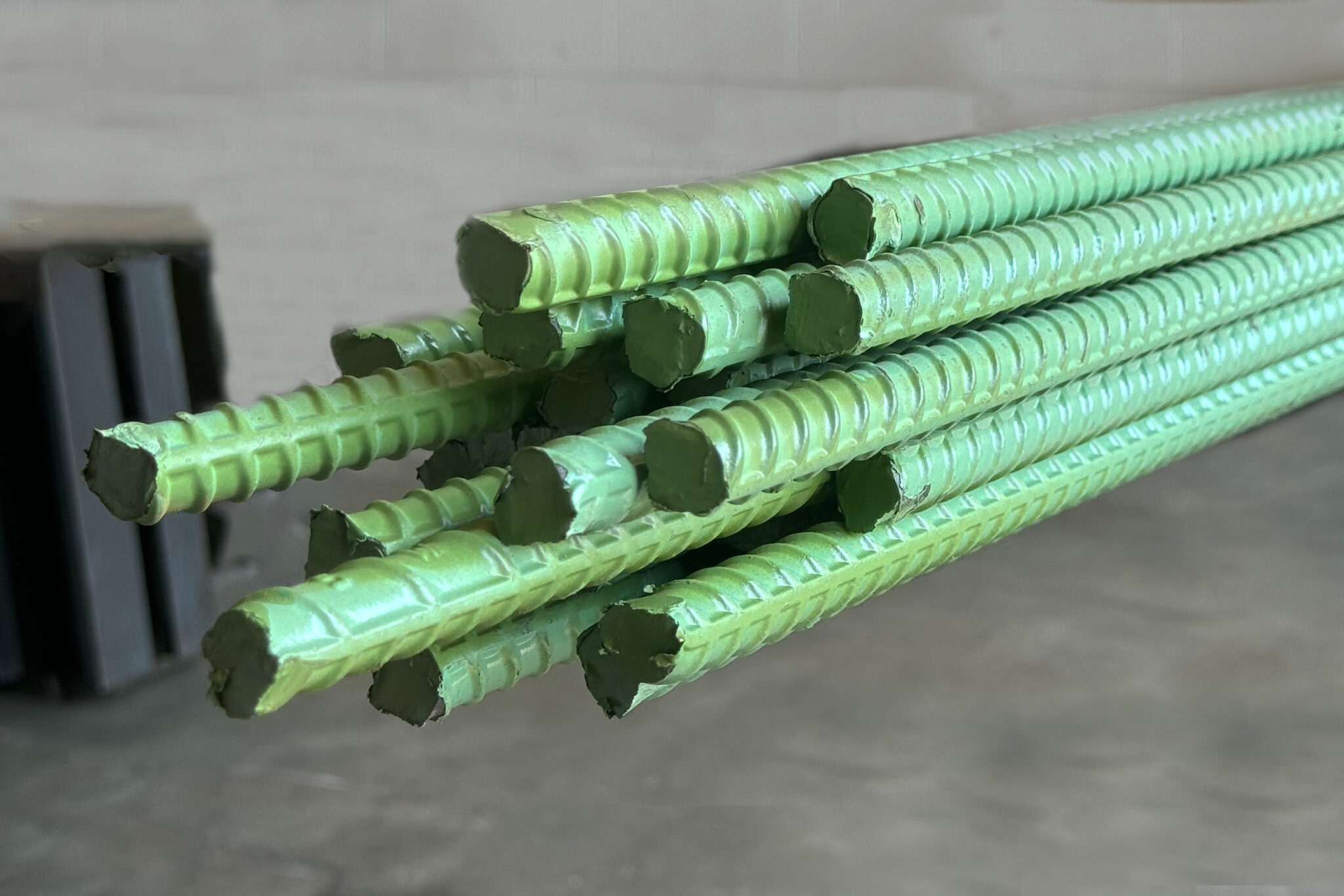

Grade 400W Epoxy Coated Rebar
10m, 15m, 20m (larger sizes on request)

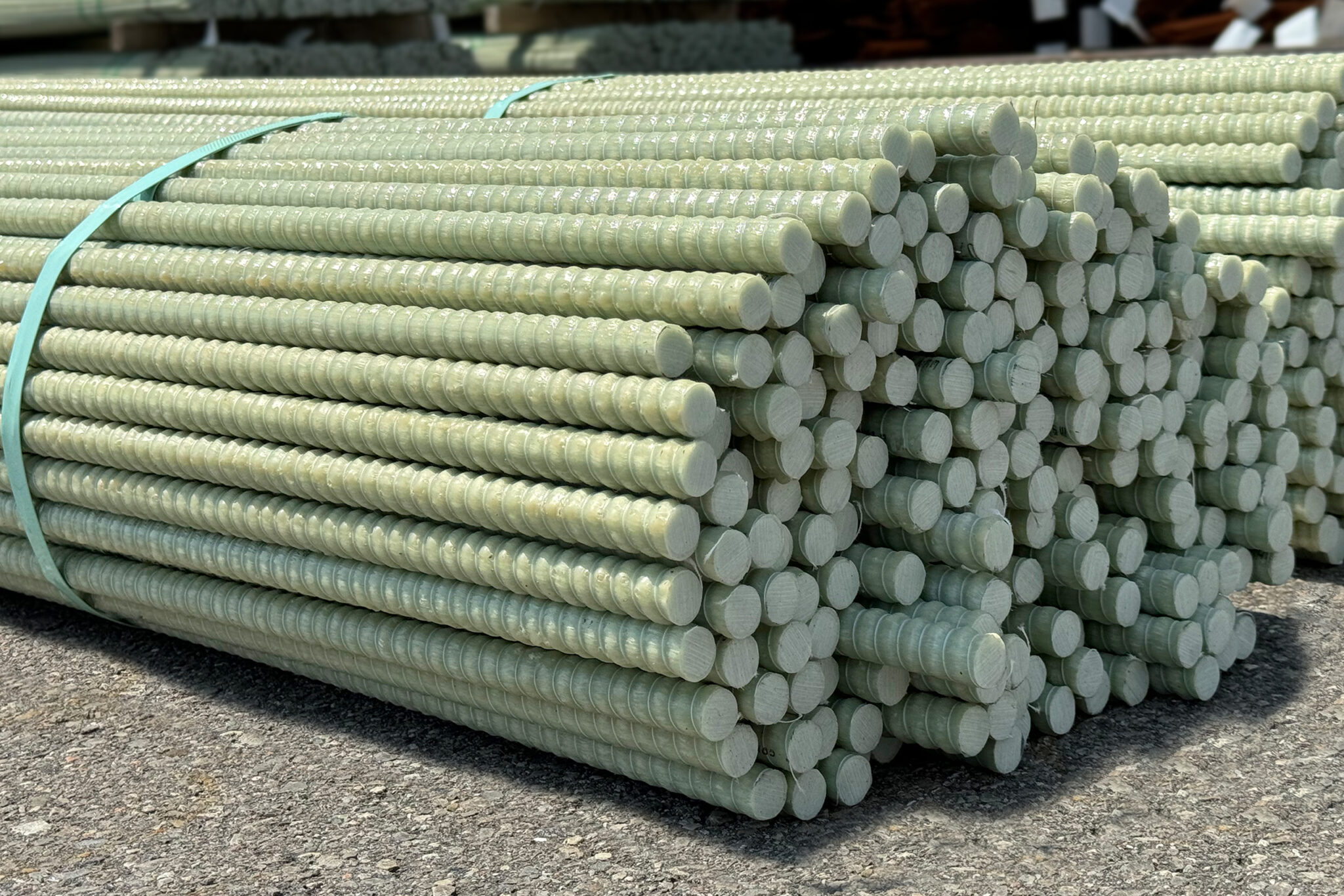

Glass Fibre Reinforcing Bars (GFRB)
10m and 15m (other sizes on request)

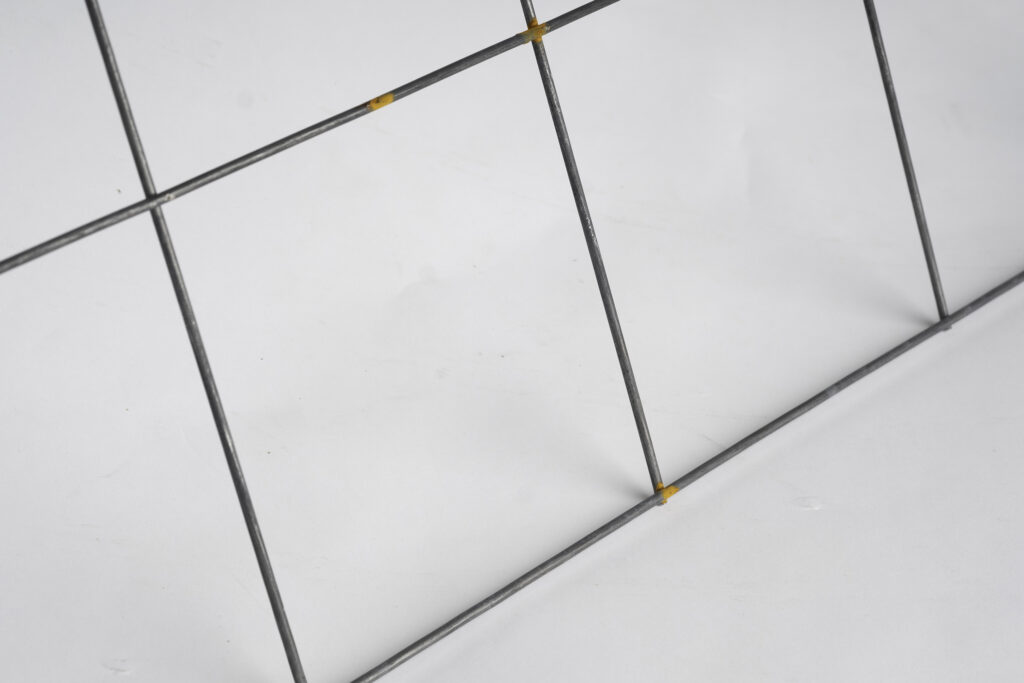

Welded Wire Mesh
6” x 6” x 6/6
6” x 6” x 9/9
6” x 6” x 10/10
We can also supply the following items based on project requirements :
Mechanical couplers and terminators
Grade 500W Rebar – any size
Smooth Rebar
typical Bar bend shapes
Our technical team will help you order the right product to suite your requirement.
CANADIAN BAR DIAMETERS
| Bar Size | Mass (Kg/m) | Nomimal Diameter (mm) | Cross Sectional Area (mm^2) | Perimeter |
|---|---|---|---|---|
| 10M | .785 | 11.3 | 100 | 35.5 |
| 15M | 1.570 | 16.0 | 200 | 50.1 |
| 20M | 2.355 | 19.5 | 300 | 61.3 |
| 25M | 3.925 | 25.2 | 500 | 79.2 |
| 30M | 5.495 | 29.9 | 700 | 93.9 |
| 35M | 7.850 | 35.7 | 1000 | 112.2 |
| 45M | 11.775 | 43.7 | 1500 | 137.3 |
| 55M | 19.625 | 56.4 | 2500 | 177.2 |
Get in Touch for a quote
Our technical team will help you order the right product to suite your requirement.
