Reinforcing steel is only useful when the people making, delivering, and placing it can interpret the design consistently. A structural plan may establish the required reinforcement, but detailing organizes that information into identifiable marks, dimensions, quantities, shapes, zones, and installation notes. The result is a working set of instructions for the fabricator and field crew.
Dass Rebar supports Ontario projects from 370 New Enterprise Way in Woodbridge. Its in-house estimating, detailing, fabrication, delivery, project management, and assembly capabilities allow project information to move between planning and production without treating each stage as an isolated task.
What is rebar detailing?
Rebar detailing is the process of translating structural design information into fabrication details and placing drawings. Those documents show what reinforcing steel is required, where it goes, how it is shaped, how much is needed, and how it should be identified during fabrication and installation.
Placing drawings are not a replacement for the engineer’s design. They are construction instructions that communicate the design intent to the contractor and reinforcing crew. The engineer, design professional, detailer, fabricator, general contractor, and placing crew each have distinct responsibilities, so questions about design changes, substitutions, or unclear requirements should be resolved through the project’s approved review process.
In a typical package, the detailer coordinates:
- Plans, elevations, and sections: Views that show reinforcement in slabs, beams, columns, walls, footings, mats, and other structural members.
- Bar marks: Identifiers that connect a bar shown on a drawing with its entry in a bar list, bundle tag, and fabrication record.
- Bar lists: Schedules describing size, mark, shape, cut length, and quantity.
- Bending schedules: Machine-ready information describing shapes, dimensions, bends, and radii.
- Placement notes: Instructions covering cover, laps, hooks, supports, openings, construction joints, and congested areas.
For an introductory reference on how reinforcing bars are placed and supported, the CRSI placing bars guidance explains the relationship between placing drawings, bar supports, and concrete cover.
Why rebar detailing matters on a construction project
Good detailing reduces interpretation at the point where mistakes are most expensive: after steel has been fabricated, delivered, or installed. Clear marks and coordinated dimensions allow a crew to identify the required bundle and place it without repeatedly returning to the office for clarification.
The benefits are practical rather than cosmetic. A coordinated package can help project teams:
- Identify missing bars, openings, laps, hooks, and support requirements before fabrication.
- Reduce avoidable requests for information caused by unclear marks or conflicting views.
- Organize fabrication by pour break, level, grid, member, or delivery sequence.
- Match bundles to crane picks and available laydown space.
- Give inspectors a clear reference for checking location, spacing, cover, and continuity.
- Limit re-handling, damaged coatings, misplaced bundles, and rushed field changes.
Detailing cannot correct an unresolved structural design issue by itself. It can, however, expose conflicts early enough for the responsible project participants to review them before steel reaches the forms.
How the rebar detailing process works
A reliable workflow moves from design review to quantity takeoff, documentation, checking, fabrication, delivery, and field support. The exact sequence varies by project, but the following stages provide a useful coordination framework.
1. Review the design information
The detailer begins by reviewing structural plans, specifications, schedules, general notes, revisions, architectural interfaces, and available coordination information. Important review points include member geometry, bar sizes, spacing, concrete cover, construction joints, development regions, lap requirements, embeds, openings, sleeves, and areas where reinforcement may become congested.
Revision control is essential. A bar list prepared from an outdated drawing can create a production problem even when the list itself is internally consistent. The current approved information and project-specific requirements should be confirmed before release.
2. Build the takeoff and bar marks
The takeoff identifies the required reinforcement by member or work area. Bars are assigned marks that remain consistent across plans, sections, schedules, tags, and field discussions. Similar bars may be grouped where the design permits, but grouping must not hide differences in location, shape, coating, grade, or length.
3. Prepare placing drawings
Placing drawings show the location and arrangement of reinforcement. A useful sheet makes it easy to answer questions such as: Which bars are top or bottom? What is the direction of each layer? Where does a bar start and stop? How are openings framed? Where are laps staggered? What supports maintain the specified cover?
4. Produce bar lists and bending schedules
The list and schedule connect design information to the fabrication floor. Each entry should communicate enough information to cut, bend, count, tag, and inspect the bar. Shape dimensions and bend information must be compatible with the project requirements and the applicable fabrication process.
5. Check before release
Checking should compare drawings against lists, lists against schedules, and all three against the source design information. Reviewers should also look for duplicate marks, omitted bars, inconsistent quantities, impossible dimensions, clashes at openings, inadequate access for concrete placement, and unclear revision status.
6. Sequence fabrication and delivery
Once information is released, marks can be grouped by pour, level, member, truckload, or crane reach. Bundle tags and a delivery sequence should reflect how the crew will use the steel rather than only how it was produced.
7. Support field installation
Questions that arise during placement should be documented and routed to the appropriate responsible party. A detailer can help interpret marks and identify the relevant drawing view, while design decisions and approved changes should remain under the project’s established authority.
Core detailing deliverables and who uses them
| Deliverable | What it communicates | Typical users |
|---|---|---|
| Placing drawings | Bar locations, spacing, layers, sections, laps, hooks, supports, and notes | GC, site supervisor, ironworker, inspector |
| Bar list | Mark, size, shape, length, quantity, and related identification | Estimator, fabricator, production lead |
| Bending schedule | Shape code, dimensions, bend information, and production data | Detailer, machine operator, quality reviewer |
| Bundle tags | Mark, quantity, destination, and handling or sequence information | Shipping team, crane operator, placing crew |
| Revision record | What changed, when it changed, and which documents are affected | Project management and document control |
Detailed presentation guidance should be aligned with the project’s design and review requirements. A useful technical reference is the ACI guide to presenting reinforcing steel design details, which emphasizes clarity and consistency in the information needed for fabrication details and placing drawings.
How to read rebar placing drawings
Begin with the title block, revision, general notes, legend, and bar notation. Confirm that you are using the drawing issued for the relevant work area. Then trace the bar mark through the plan, section, schedule, and bundle tag.
Legend and notation
The legend normally explains line types, bar sizes, layers, coatings, and abbreviations. A callout may identify a bar size and spacing, a quantity of identical bars, a top or bottom layer, or a reference to another detail. Do not infer an exception from a familiar notation if the project legend defines it differently.
Plans, elevations, and sections
Plans establish horizontal location and spacing. Elevations show vertical continuity and levels. Sections clarify depth, cover, hooks, laps, supports, and relationships between layers. Congested areas such as beam-column joints, wall intersections, transfer zones, openings, and embeds often require the closest attention to sections and enlarged details.
Example callout
A notation such as “15M-T1 at 8 inches on centre, top” may identify 15M bars in a top layer at the stated spacing and mark series. The project legend and referenced sections still control the interpretation, including the bar’s extent, lap arrangement, and termination.
Grades, sizes, coatings, and mesh
Detailing must match the specified material, not merely a bar that appears similar. Grade, size, coating, length, shape, and quantity all affect procurement and fabrication. Any proposed substitution should be reviewed and approved through the project process before the drawings or production records are changed.
| Material or option | Detailing considerations |
|---|---|
| Grade 500W | Confirm the design’s strength assumptions, lap and development requirements, availability, and identification on tags and drawings. |
| Grade 400W | Check that the specified grade is maintained and that a proposed change is reviewed rather than assumed equivalent. |
| Epoxy-coated rebar | Show coating requirements clearly and plan padded handling, protected storage, compatible supports, and approved touch-up procedures. |
| Glass Fibre Reinforcing Bar | Follow the product and project requirements for bends, laps, development, cutting, and installation; it is not detailed exactly like steel. |
| Welded wire mesh | Identify sheet configuration, laps, supports, orientation, and placement sequence. Dass Rebar supplies standard configurations including 6 by 6 at 6/6, 9/9, and 10/10 gauges. |
Common steel lengths such as 10M, 15M, and 20M should be confirmed against the project specification and supply plan. The guide to 10M rebar uses in Ontario provides additional context for planning around a common bar size.
For broader product and procurement context, the reinforcing bar guide and steel reinforcement suppliers guide can help teams compare the information that should be confirmed before release.
Laps, cover, development, and anchorage
These details affect both structural performance and constructability. A drawing should make the required arrangement clear without forcing the placing crew to guess where a splice belongs or how a bar continues through an intersection.
Lap splices
Show lap locations and lengths according to the design and project requirements. Where permitted, staggering laps can reduce congestion, but the detail must state the required arrangement. Concentrating multiple splices at one gridline can make tying and concrete consolidation more difficult.
Concrete cover

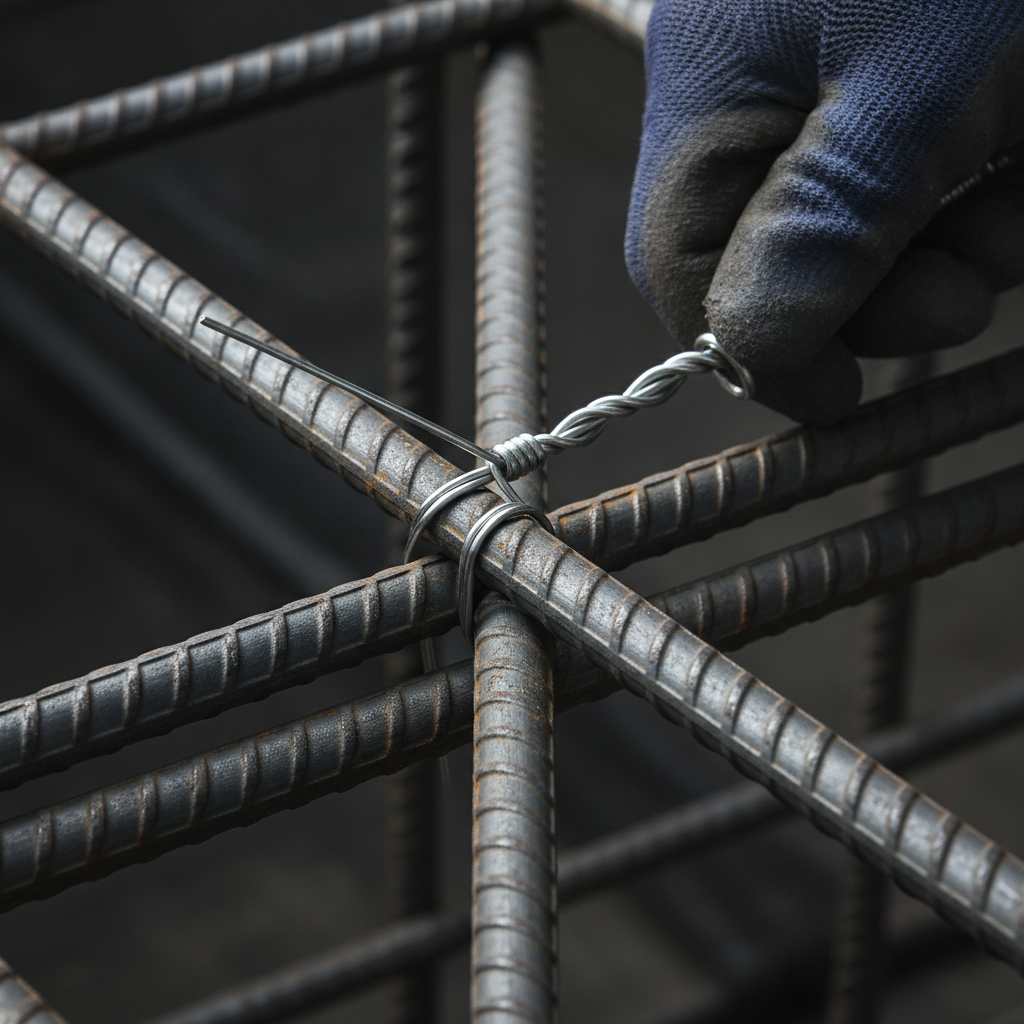

Cover protects reinforcement and establishes the bar’s position within the member. Call out cover at faces, edges, corners, supports, openings, and changes in geometry. Chairs, bolsters, spacers, and tie methods must hold the cage at the required elevation until concrete placement is complete.
Development and anchorage
Hooks, straight embedment, mechanical anchorage, and bar termination details must follow the approved design. Check that hooks clear forms, embeds, sleeves, and adjacent reinforcement. Do not field-bend or heat embedded bars unless the responsible engineer and project requirements expressly permit it.
Quality assurance and field verification
Quality assurance works best as a series of small checks rather than a final inspection after all steel is installed. The fabrication record, bundle tag, drawing, and field placement should tell the same story.
Before fabrication
- Confirm the drawing revision, specifications, bar grades, sizes, coatings, and mesh requirements.
- Compare bar marks and quantities across placing drawings, lists, and schedules.
- Review openings, embeds, construction joints, lap zones, and congested intersections.
- Check that shape dimensions and bend information are complete and producible.
At receiving and laydown
- Match bundle tags to the delivery documents and current drawing marks.
- Separate coated and uncoated steel where required and keep steel supported off the ground.
- Inspect for damaged bars, unreadable tags, missing accessories, and delivery quantities that do not match the planned pour.
- Place bundles so the first-needed steel is accessible without unsafe re-handling.
Before concrete placement
- Verify bar size, spacing, quantity, orientation, cover, laps, hooks, and continuity.
- Check chairs, spacers, bolsters, ties, and support spacing at slabs, walls, mats, and beams.
- Confirm reinforcement does not obstruct required embeds, sleeves, forms, access, or concrete consolidation.
- Record questions and changes through the project’s approved process before the pour proceeds.
Ontario’s ironworker regulation addresses topics such as bar grades, sizes, bending, bundling, tagging, supports, splicing, tying, repairs, and placement. The reinforcing rodworker scope of practice also identifies work involving reinforcing bars, welded wire mesh, and the interpretation of structural and placing drawings. Project specifications, approved drawings, and applicable current requirements remain the controlling references for a particular job.
Connecting detailing to fabrication and delivery
A drawing package becomes more useful when its organization reflects how steel will actually be made and installed. Marks can be grouped by pour break, level, grid, member, truckload, or crane reach. The best choice depends on the site’s available laydown space, lifting plan, crew size, and concrete sequence.

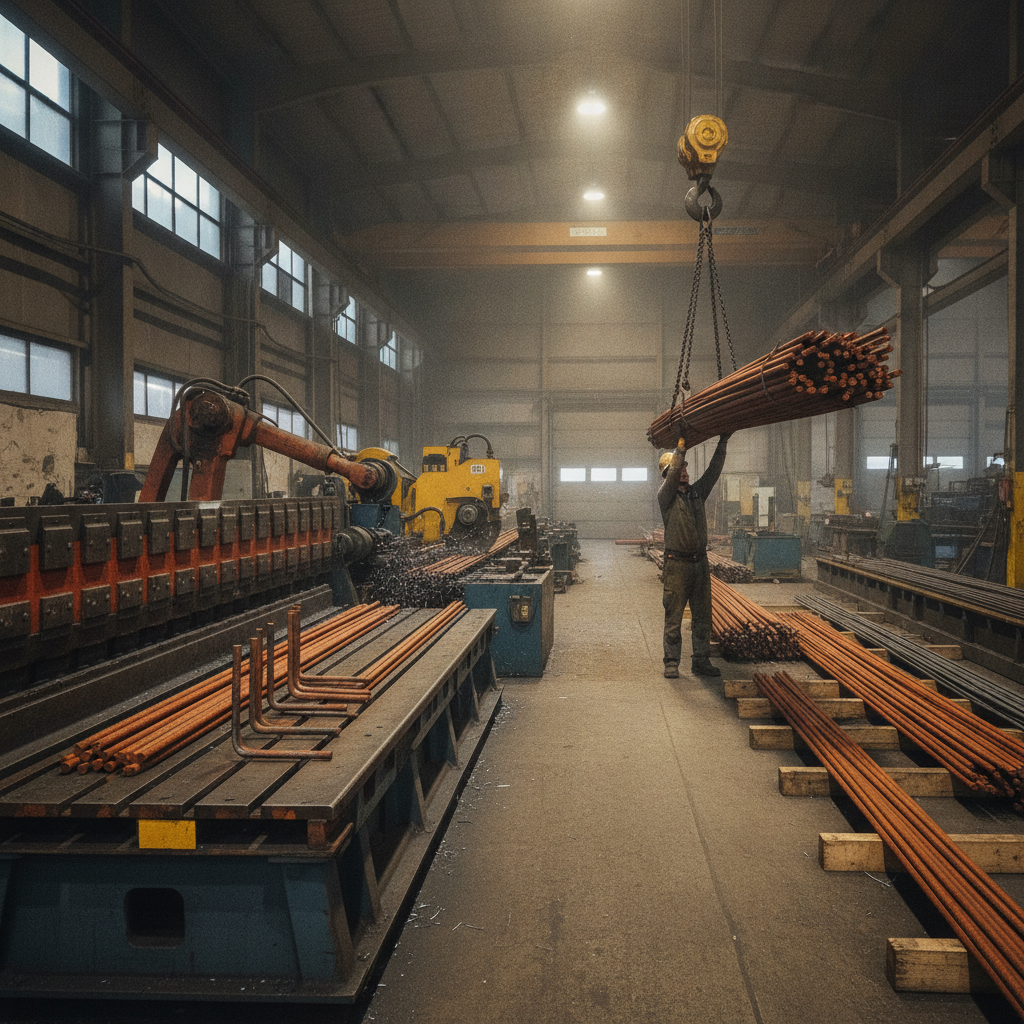

At the shop, consistent shapes, complete dimensions, and unambiguous quantities reduce machine interruptions and manual interpretation. At the site, readable tags and a bundle map reduce searching and double-handling. Dass Rebar’s Ontario fabrication guide describes the relationship between detailing information and the production stage.
Practical delivery planning
- Divide loads according to the work sequence rather than simply filling a truck.
- Identify first-needed bundles and keep their tags visible.
- Coordinate delivery windows with crane availability, site access, and laydown restrictions.
- Protect epoxy-coated steel with suitable dunnage and handling methods.
- Share current drawings and delivery records with the field team before unloading.
Teams planning this coordination can use Dass Rebar’s rebar supply overview and its guidance on timely rebar delivery as related planning resources.
Woodbridge and GTA coordination considerations
For a Woodbridge project, detailing and delivery plans should account for the actual site rather than treating trucking as an afterthought. Access, turning space, crane setup, temporary restrictions, and the available laydown area can change which bundles should arrive first.
- Coordinate delivery windows around the Queen Street and Highway 50 corridor when traffic could affect unloading or crane time.
- Confirm truck turning paths, staging areas, and temporary no-parking arrangements before the first shipment.
- Plan protected storage for epoxy-coated bars and additional staging needs during winter work or weather-sensitive pours.
- Use pour-specific bundle maps when the site has limited room to sort steel after delivery.
These are coordination considerations, not universal traffic or weather rules. The site logistics plan, project schedule, and current conditions should determine the final delivery arrangement.
Tools and document-control habits that help
Digital tools are valuable when they make the approved information easier to find and verify. They do not remove the need for engineering review, drawing control, or field judgment within the project’s responsibilities.
- Use consistent sheet names that identify project, level, zone, and pour.
- Keep bar marks identical across drawings, schedules, tags, and delivery records.
- Provide site-readable PDFs and fabrication-friendly schedule exports where required.
- Maintain a revision record so superseded drawings are removed from active use.
- Use enlarged details or coordinated views where reinforcement is congested.
- Record open questions by drawing reference, mark, location, and required response.
A strong document flow gives a foreperson a fast answer to “what is this bar, where does it go, and what supports it?” That is the practical standard to apply when reviewing a detailing package.
Common detailing and placement mistakes
Many field problems are preventable because they begin as missing or unclear information. Typical examples include a bar mark that appears on a schedule but not on the plan, a lap note that does not identify its location, a support requirement omitted from a slab detail, or a delivery sequence that ignores the crew’s installation order.
Other problems arise when a familiar material is treated as interchangeable with the specified one. Grade, coating, GFRB, mesh configuration, bend radius, and lap requirements should be confirmed rather than inferred. Likewise, a substitution or field adjustment should not be presented as accepted until the appropriate project review has occurred.
Frequently asked questions about rebar detailing basics
What is included in a basic rebar detailing package?
A basic package commonly includes placing drawings, bar marks, bar lists, bending schedules, sections, notes, and bundle identification. The exact documents depend on the project, material, structural system, and contract requirements. A complete package should give fabrication and field teams enough coordinated information to identify, produce, deliver, and place the reinforcement.
What is the difference between a bar list and a bending schedule?
A bar list organizes each mark by size, shape, length, and quantity for estimating, fabrication, bundling, and delivery. A bending schedule focuses on the shape and dimensions needed to produce the bent bar. They work together, but neither should be treated as a substitute for the placing drawings that show location.
How should a contractor check rebar drawings before a pour?
Start with the current revision, legend, and general notes. Then verify bar size, spacing, quantity, layers, cover, laps, hooks, supports, openings, embeds, and continuity against the relevant plans and sections. Any unresolved design question or proposed change should be documented and reviewed through the project’s approved process before concrete placement.
Is GFRB detailed the same way as steel rebar?
No. Glass Fibre Reinforcing Bar has different characteristics and may require different rules for bends, laps, development, cutting, and handling. Use the approved product information and project requirements, and confirm the detailing approach before fabrication or installation.
