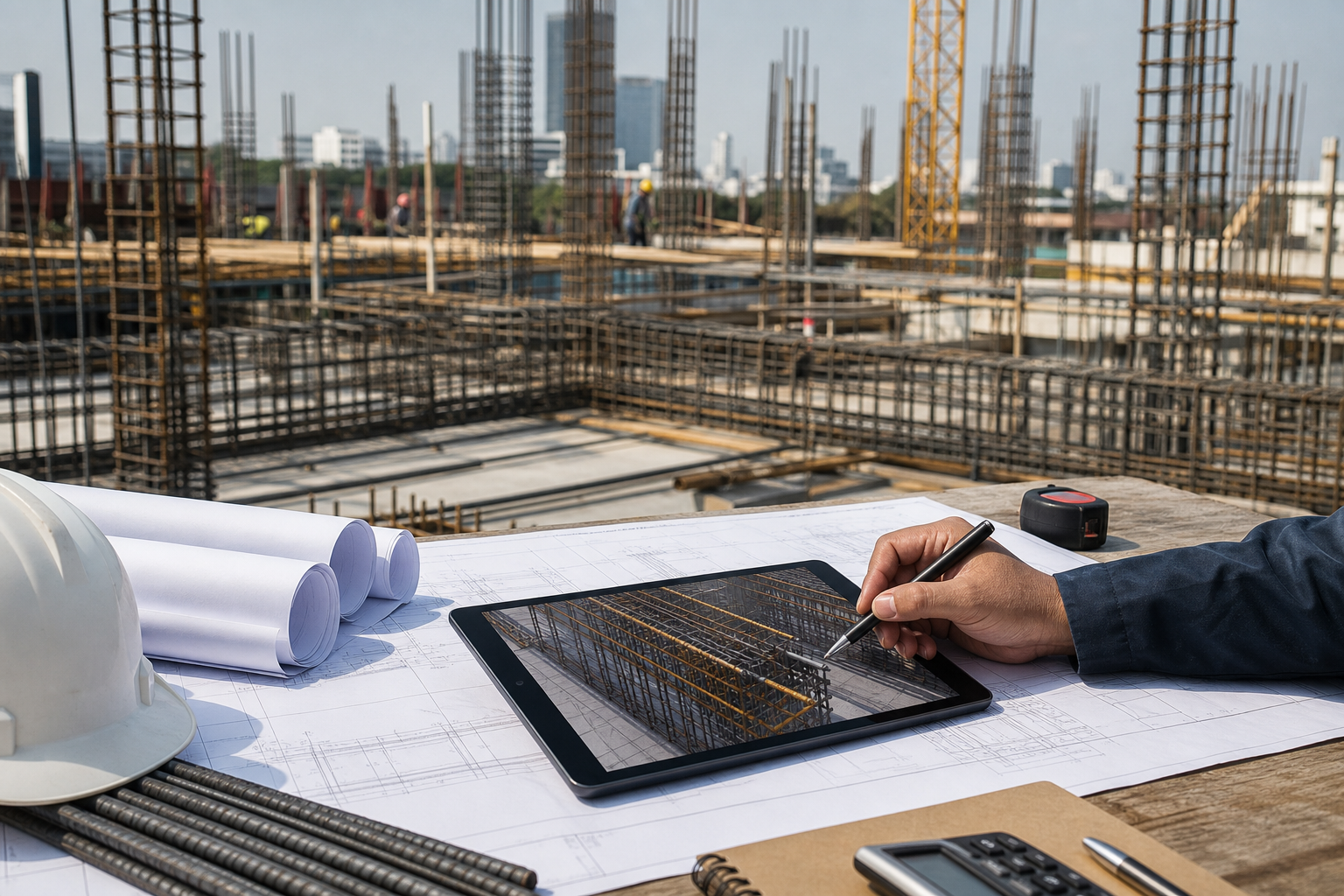

Shop Drawings for Rebar That Keep Fabrication and Placement Aligned
One-page checklist you can print and use now
Use this numbered checklist to decide whether a shop-drawing submittal for reinforcing steel is ready for fabrication. Each item is an approval stop. If any item fails, return the submittal for revision.
- Cover sheet with project name, contract references, submittal number, revision table, and scope statement.
- Complete drawing index and sheet numbering that matches the cover sheet.
- Member references and location keys that correspond to structural drawings.
- Bar marks clearly shown on plan views, elevations, and sections, matching the BBS.
- Bar bending schedule with mark, size, quantity, total length, shape code, hooks, and bend radii.
- Concrete cover, development length, lap and splice details, and continuity notes shown for each member.
- Material declarations, mill or test certificates, and coating notes for epoxy or alternative reinforcement.
- Coordination notes, clash resolution records, and a deviation log for proposed changes.
- Fabrication tolerances, handling instructions, and delivery sequencing for site logistics.
- Contractor review stamp, signature block, and a clear revision control method before release to fabrication.
What a complete rebar shop-drawing submittal must include
A complete submittal bridges the structural design and the practical work of fabrication and placement. Industry checklists describe a standard package that includes cover sheets, product data, coordination details, and contractor review stamps so reviewers can find context quickly and record decisions formally. See a summary checklist for shop drawing submittals in the industry resource linked below.
Submittal components explained
Cover sheet and submittal summary
The cover sheet is the single page reviewers open first. It should show the project name, contract and drawing numbers, a concise scope statement describing which members the package covers, a revision table, and the submittal number. Include stamp blocks for contractor and consultant responses so reviewer decisions are recorded on the same document where possible. A clear cover sheet reduces search time during review and speeds decision making.
Shop drawing pages and bar marks
Every plan view, section, and elevation must use consistent bar mark conventions and location keys. Bar marks on drawings must match the bar marks listed in the bar bending schedule, and member references must tie directly to the structural drawings. Reinforcement shop drawings serve as the bridge between design intent and fabrication details, so clarity and one-to-one references are essential. The SIDA reinforcement shop drawing guidance explains the typical content and conventions used by detailers.
Bar bending schedule and bending details
The bar bending schedule, or BBS, is the fabrication instruction. It must list mark number, size, quantity, total length, shape code, hook details, and any required bend radii or deduction rules. Include example bend sketches and a legend for shape codes when your BBS uses abbreviated codes because small ambiguities cause cutting errors in the shop.
Material data, coatings, and certifications
State the grade of steel and any coatings or alternative reinforcement used. If epoxy coated rebar or glass fibre reinforcing bars are proposed, declare handling, fabrication limits, and coating specifications. For infrastructure projects, include mill certificates or traceable mill sources to satisfy quality checks. Dass Rebar lists common material types including Grade 500W and Grade 400W rebar and epoxy-coated options on its product pages.
Coordination notes, clash resolution, and deviation logs
Document every known clash and the resolution method. If the detailer proposes a substitution or deviation, include a deviation log with the rationale, referenced drawing revision, and a clear request for consultant approval. Submittal guides recommend including marked product data and coordination notes so reviewers can see where decisions were made and why.

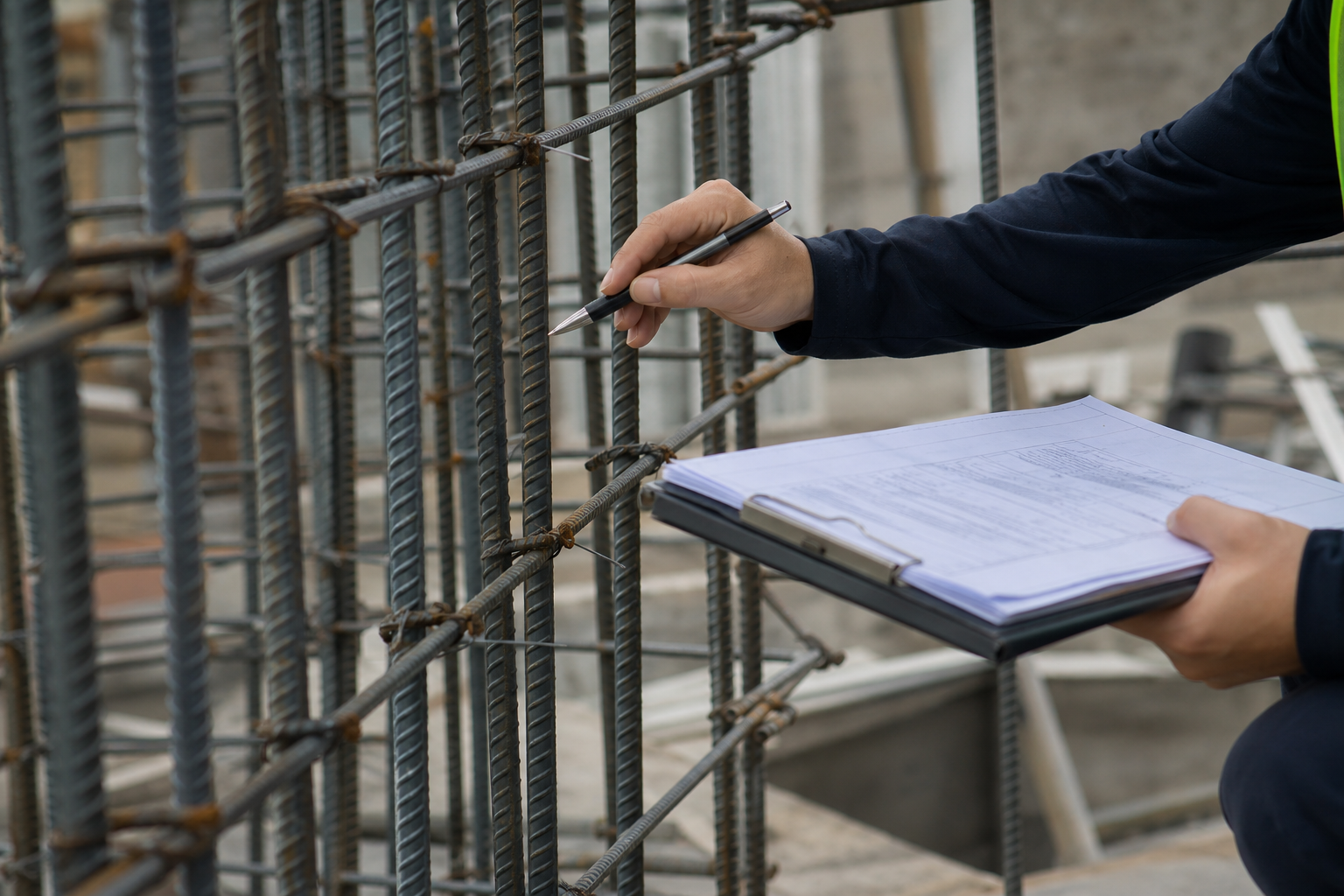

Approval decision checkpoints and decision criteria
Use the following stop points to decide whether to approve, reject, or request revision. Each checkpoint lists objective criteria you can verify quickly.
Bar marks and member references
Decision question: Do bar marks on plans match the BBS and the structural drawings? Pass if every bar mark is unique, referenced to a member, and present in the BBS. Reject if bar marks are duplicated, missing, or inconsistent with the structural references.
BBS accuracy and bend details
Decision question: Are lengths, shape codes, quantities, and hooks correct for the shown geometry? Pass if totals reconcile to the drawing schedules, deduction and extension rules are clear, and example bends are legible. Request revision if arithmetic errors, missing hooks, or unclear shape codes appear because those cause fabrication waste and site delays.
Concrete cover, development length, and splices
Decision question: Do the cover and splice lengths conform to the contract specifications and structural notes? Pass when cover dimensions are annotated on each detail and splice lengths are shown for all laps or mechanical splices. Flag any location where cover is reduced by architectural inserts or conduits and require a coordinated solution.
Fabrication tolerances, delivery sequencing, and handling
Decision question: Will the fabrication and delivery plan meet the site staging and handling constraints? Pass if fabrication tolerances and packing instructions are provided, and special handling notes exist for coated or alternative products. If the submittal lacks delivery sequencing or handling for coated bars, request clarification from the detailer or supplier. Dass Rebar coordinates fabrication and delivery logistics and can supply handling instructions for epoxy or GFRB products.
Common errors that cause rework and how to catch them early
- Incorrect bar sizes listed in the BBS. Cross-check bar sizes against structural schedules and the BBS totals to catch mismatches early.
- BBS arithmetic mistakes. Reconcile totals on a sample member to confirm length and quantity math.
- Mismatched bar marks. Verify a one-to-one link between bar marks on drawings and entries in the BBS.
- Missing cover or unspecified splices. Require cover callouts and splice details on every affected member before approval.
- Unrecorded deviations. If a substitution is needed, ask for a deviation log that includes consultant approval before fabrication.
When in doubt, reject and request a corrected submittal. Catching errors at review is always less costly than cutting, bending, and then reworking fabricated steel.

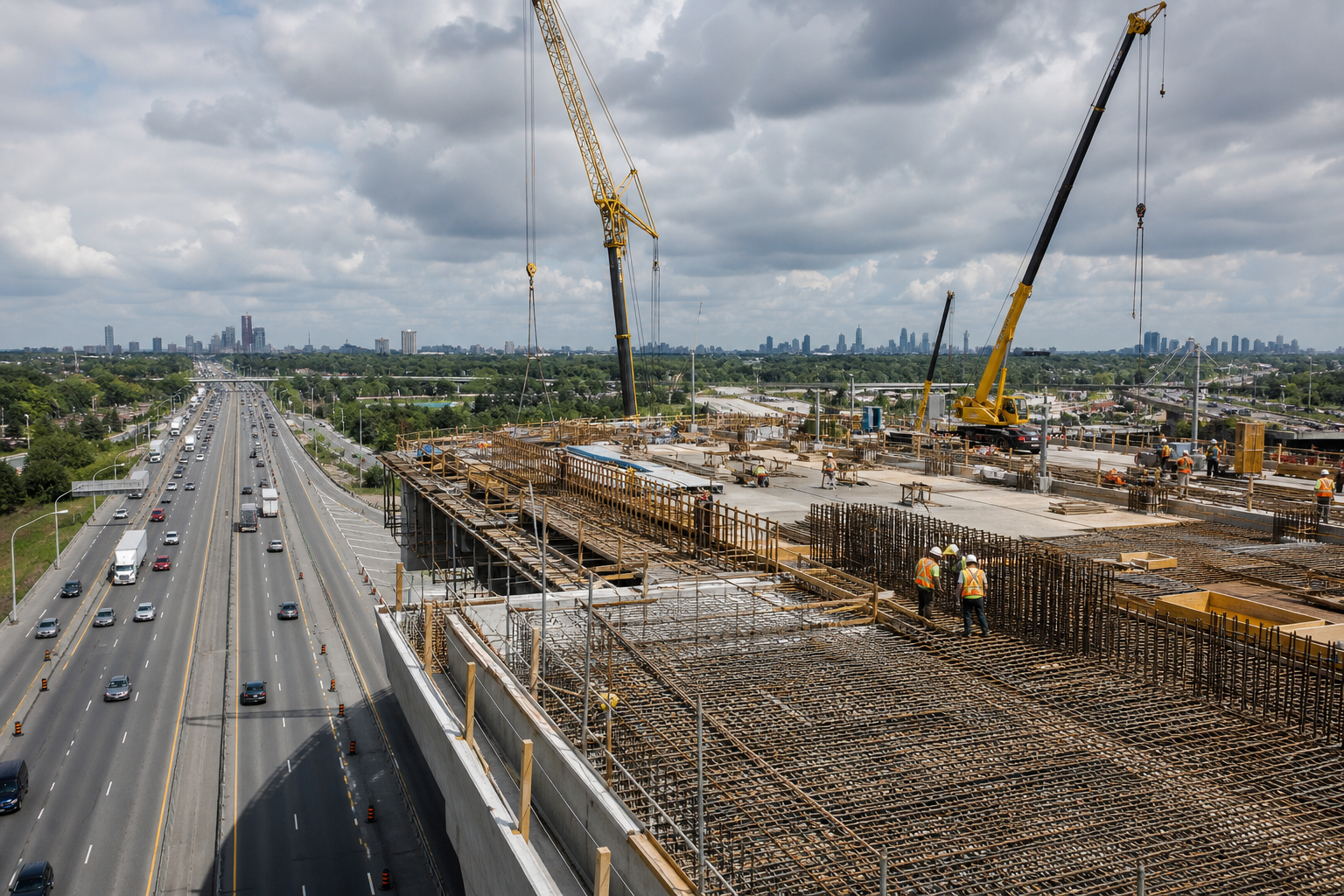

Ontario and MTO considerations for infrastructure projects
For provincial infrastructure work, make jurisdiction checks part of your review. Confirm the contract references provincial specifications. Verify the supplier can meet MTO requirements when specified and request mill certificates or traceable material declarations. Dass Rebar identifies itself as an MTO-approved supplier and lists applicable reinforcing products and coatings on its site, which helps reviewers confirm compliance for Ontario projects.
What to send Dass Rebar to get a fast, accurate quote and shop drawings
To speed estimating and detailing, provide clear digital files and contact data. Below is the minimum package Dass Rebar asks for to prepare a quote and shop-drawing submittal.
Minimum files and naming conventions to send
- Marked structural drawings with revision clouded items and a drawing list, PDF and native CAD if available.
- Project specifications and reinforcement schedules with referenced section numbers.
- BIM exports with reinforcement layers, IFC or native model files when available.
- Architectural clash registers and any embedded services or openings that affect cover.
- Preferred CAD format and a single contact person with phone and email for clarifications.
Label files with the project name, discipline, and date to avoid confusion. Dass Rebar provides in-house detailing and estimating to convert these inputs into an accurate submittal. See the detailing service page for scope and deliverables.
How Dass Rebar will respond and what deliverables you will get
After receiving your package, a typical supplier response includes a written quotation, a preliminary shop-drawing submittal PDF with BBS sheets for fabrication, coordination notes listing unresolved clashes, and a proposed revision cycle. Dass Rebar’s integrated services include estimating, detailing, fabrication, delivery, and on-site assembly so the process stays coordinated from quote to placement.
Before fabrication: final sign-off checklist and change control
Complete these final steps before cutting and bending. Keep the record of approvals and changes together with the released submittal.
- Confirm contractor review stamp and sign-off are present on the released submittal.
- Obtain the consultant or engineer stamp if the contract requires it.
- Record the revision number and date on all BBS and drawing sheets.
- Document any late changes via a change-order log with cost and schedule implications.
- Confirm delivery windows and handling notes for special products before fabrication begins.
Frequently asked questions
What documents must be included in a rebar shop-drawing submittal
Include a cover sheet, indexed drawing set, BBS, material data and certifications, coordination notes and deviation logs, and the contractor review stamp. Industry submittal checklists outline these required items.
How should I review a bar bending schedule before approving fabrication
Verify mark numbers match drawings, check quantities and total lengths, confirm shape codes and hooks, and reconcile sample member calculations. If arithmetic or code ambiguities appear, request a corrected BBS.
When do I need to check for MTO compliance on an Ontario project
Check for MTO requirements when the contract or tender references provincial specifications. Confirm the supplier’s MTO approval status and material declarations; Dass Rebar lists MTO-approved status on its site for this purpose.
What file formats and data should I send Dass Rebar for estimating and detailing
Send marked structural PDFs and native CAD or BIM exports when available, the project spec, reinforcement schedules, any clash registers, and a single contact for clarifications. Clear file names and a short scope note speed the response. See the detailing service page for a full list of acceptable deliverables.
Who must sign off on shop drawings before fabrication can start
Sign-off depends on the contract, but the contractor review stamp is always required. Many projects also require a consultant or engineer stamp before fabrication. Include written change control for any late revisions.
