What this guide covers
Epoxy coated steel rebar, also called epoxy rebar or ECR, is conventional reinforcing steel protected with a factory-applied epoxy coating. The coating is intended to reduce direct contact between the steel and chloride-bearing moisture, which can delay corrosion in reinforced concrete exposed to road salt, splash, spray, or repeated wetting and drying.
That benefit does not make ECR an automatic choice for every structure. Ontario owners, engineers, contractors, and suppliers need to consider the exposure, concrete cover, waterproofing, design life, handling requirements, procurement, and the governing specification together. In particular, current Ministry of Transportation guidance indicates that epoxy-coated steel is no longer used as the Ministry’s corrosion-protection strategy for certain bridge applications. Premium reinforcement or other approved strategies may be required in those cases.
This article explains how to evaluate epoxy rebar, how to specify and order it, and how to protect the coating from takeoff through concrete placement. It also explains how Dass Rebar supports Ontario projects with estimating, detailing, fabrication, delivery, project coordination, and on-site assembly.
- Understand what epoxy-coated steel rebar is and what the coating does.
- Decide when ECR is suitable and when another reinforcement type deserves priority.
- Coordinate grades, sizes, splices, shop drawings, and delivery sequencing.
- Protect the coating during fabrication, storage, lifting, tying, and inspection.
- Use a practical Ontario-focused workflow from drawings to pour.

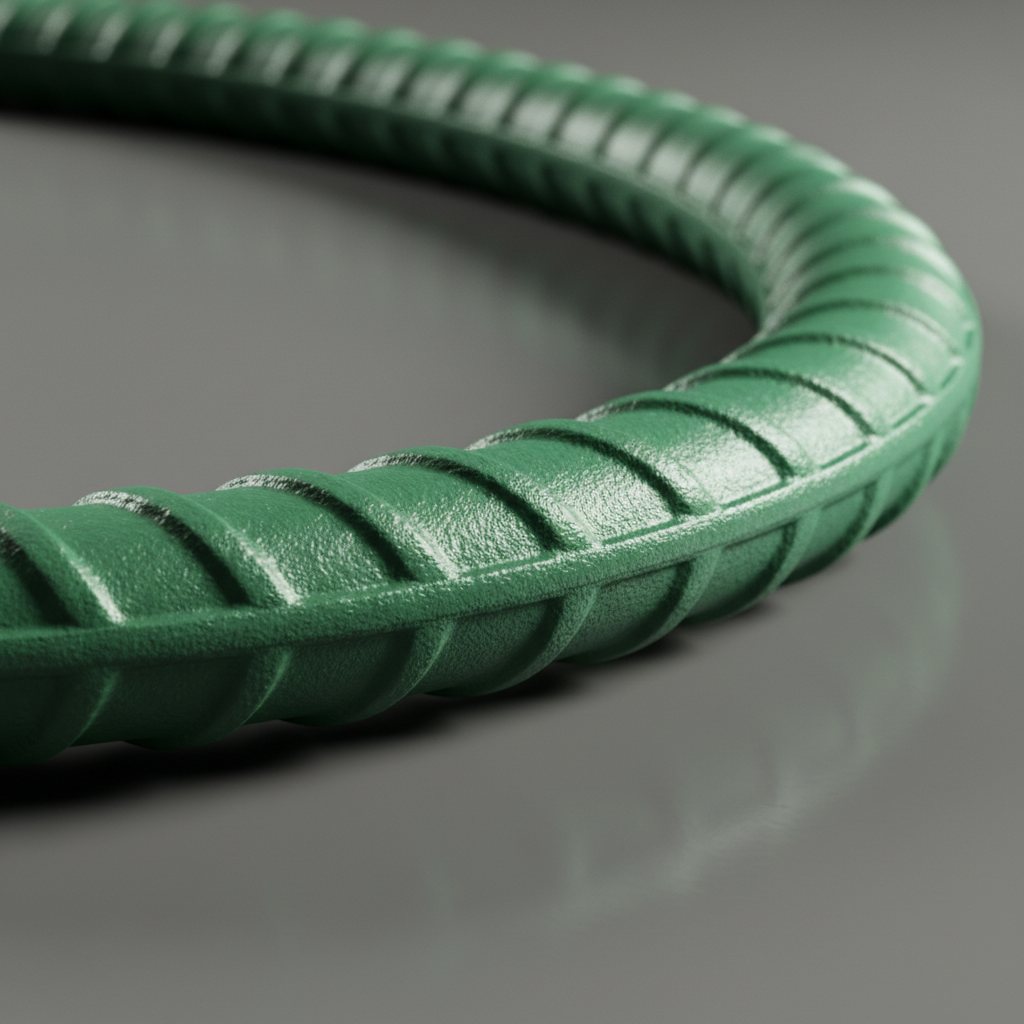

What is epoxy coated steel rebar?
Epoxy-coated steel rebar is deformed or plain reinforcing bar coated with a protective organic epoxy layer. The coating is normally applied in a controlled plant environment after the steel surface has been prepared. Electrostatic spray application is one recognized method, and the finished product must meet the requirements stated in the project specification.
The epoxy film acts as a barrier. It can reduce the rate at which chlorides, moisture, and oxygen reach the steel surface, helping delay the electrochemical process that produces rust. It does not replace adequate concrete cover, sound mix design, consolidation, curing, crack control, or waterproofing.
Most contractors recognize ECR by its coloured coating, often green. Colour helps field identification, but it is not by itself proof that the product meets a particular specification. Tags, mill documentation, coating records, delivery documents, and inspection procedures remain important.
What the coating changes – and what it does not
- It adds a barrier: the epoxy separates much of the steel surface from the surrounding concrete environment.
- It preserves familiar reinforcement geometry: the bar still has ribs, bends, laps, and sizes used in reinforced-concrete work.
- It requires more handling discipline: gouges, cuts, abrasion, and impact can compromise the protective layer.
- It does not eliminate design decisions: cover, splice lengths, congestion, chairs, curing, and drainage still matter.
- It is not a universal Ontario bridge solution: the owner’s standard and engineer’s specification control the approved application.
For a project using an Ontario rebar supplier, the most useful question is not simply whether epoxy rebar is available. The better question is whether the proposed coating, reinforcing grade, fabrication process, and inspection plan satisfy the project’s durability requirements.
Why epoxy rebar can matter in salt-exposed concrete
Chlorides from deicing salts can enter concrete through pores, cracks, joints, drains, and splash zones. When chloride concentration at the reinforcing steel reaches a critical level, the passive protection normally provided by alkaline concrete can break down. Corrosion then produces expansive rust, which may crack the surrounding concrete and lead to delamination or spalling.
Epoxy coating is one possible layer in a durability strategy. By slowing the movement of aggressive materials to the steel, it may delay corrosion initiation in appropriate applications. The result depends on coating quality, concrete quality, crack control, cover, drainage, exposure, and the quality of installation.
Applications that may warrant evaluation
- Parking garages and ramps exposed to vehicle-borne salt and meltwater.
- Podium slabs, transfer areas, and edge conditions where leakage or splash is possible.
- Balcony edges and exterior concrete exposed to wetting, freezing, and salt-laden runoff.
- Industrial or infrastructure elements where the project design identifies chloride exposure.
- Concrete components where the engineer wants a coated-steel option without changing to a non-steel reinforcement system.
These are evaluation categories, not blanket recommendations. A bridge deck, garage ramp, or podium may have different waterproofing, traffic, drainage, and maintenance conditions. The design professional should identify the exposure and the accepted reinforcement strategy before procurement begins.
Ontario specifications and current bridge guidance
Ontario projects should identify the governing specification rather than relying on a generic product description. The supplied Ministry documentation identifies requirements for steel reinforcement with protective epoxy coating and refers to OPSS requirements governing steel reinforcement, organic coatings, and patching materials. The contract documents should state the applicable edition and any project-specific amendments.
ASTM A775/A775M is a recognized specification for epoxy-coated steel reinforcing bars, while ASTM D3963/D3963M addresses fabrication and jobsite handling. The current ASTM A775/A775M epoxy-coated bar reference is useful background, but a project should always follow the edition and standard named by the engineer or owner.
There is an important Ontario qualification. Current MTO structural guidance indicates that epoxy-coated steel is no longer used by the Ministry as its corrosion-protection strategy for certain bridge applications. The guidance identifies black reinforcing steel in waterproofed bridge decks except in designated locations, with premium reinforcement such as stainless steel or GFRP used where the applicable design identifies it.
That does not mean epoxy-coated steel rebar has ceased to exist or cannot be specified anywhere in Ontario. It means the application must be checked against the owner’s current standard. A supplier, contractor, or estimator should not assume that a historical bridge detail remains acceptable simply because ECR was used on earlier work.
Questions to resolve before ordering
- Who is the approving owner or authority?
- Which project specification and revision govern the reinforcement?
- Is the element a bridge component covered by a current MTO or municipal standard?
- Does the design call for epoxy-coated, black, galvanized, stainless, GFRP, or a hybrid system?
- What coating, patching, inspection, documentation, and handling requirements must the supplier satisfy?
Resolving these questions at tender or design-assist stage prevents a costly material substitution after bars have been detailed or fabricated.
Epoxy rebar compared with other reinforcement options
There is no single best reinforcement product for every exposure. Selection should balance corrosion resistance, design requirements, constructability, procurement, inspection, and lifecycle objectives. ECR can be a practical middle option, but it should be compared with the materials accepted by the project authority.
| Reinforcement type | Potential fit | Important decision points |
|---|---|---|
| Black carbon-steel bar | Interior or suitably protected concrete and applications where the specification permits it | Relies heavily on concrete quality, cover, drainage, waterproofing, and exposure control |
| Epoxy-coated steel rebar | Selected salt-exposed slabs, ramps, podiums, and other approved applications | Coating quality and handling are critical; confirm owner acceptance and repair requirements |
| Galvanized reinforcement | Applications requiring a metallic zinc barrier or additional robustness in selected environments | Confirm design compatibility, coating requirements, availability, and connection details |
| Stainless steel reinforcement | Critical zones and projects with demanding durability targets | Higher material cost and procurement considerations may be offset by durability objectives |
| GFRP or GFRB | Projects requiring non-corroding, non-metallic, non-conductive, or non-magnetic reinforcement | Requires different structural assumptions, detailing, bending, splicing, and installation methods |
When ECR may be the practical middle option
ECR can preserve familiar steel-reinforcement workflows while adding a protective barrier. That can simplify fabrication and placement compared with a material that has different stiffness, development, cutting, bending, or detailing requirements. It may also provide a more targeted solution when only particular mats, edges, or splash zones need enhanced protection.
When to look beyond ECR
Move the discussion toward stainless steel, GFRP, galvanized reinforcement, or a hybrid system when the owner requires it, abrasion is severe, the exposure is unusually aggressive, the design life is especially demanding, or the project requires non-metallic reinforcement. The right answer may vary within one structure: a general reinforcement system can be combined with a more durable material in joints, drains, barriers, edges, or other critical locations.

How to specify and order epoxy-coated steel rebar
A clear reinforcement package connects the structural drawings, project specification, bar lists, coating requirements, shop drawings, and delivery plan. Ambiguity about whether only straight bars or fabricated bars must be coated can create rework, so the scope should be explicit.
Define the material and exposure
Identify the element, exposure condition, required design life, concrete cover, waterproofing assumptions, and approved reinforcement type. If only selected bars receive epoxy coating, mark those bars clearly in the drawings and bar lists. If the project uses a hybrid approach, separate the material descriptions and bundle tags to reduce field confusion.
Confirm grades and sizes
Dass Rebar supplies common Ontario reinforcing products, including Grade 400W and Grade 500W rebar, subject to project requirements and availability. Common bar sizes may include 10M, 15M, and 20M, but the size and grade must come from the issued drawings rather than an assumed pattern.
Coordinate splices and congestion
Review lap locations, couplers, openings, barriers, embeds, chairs, and construction joints before fabrication. In congested zones, staggered laps or approved mechanical couplers may improve concrete placement and inspection access. Any coupler used with coated bars must be compatible with the specified system and installed according to the design and manufacturer requirements.
Prepare complete submittals
- Reinforcing steel mill or material documentation.
- Coating certification and applicable plant quality records.
- Bar lists identifying coated and uncoated items.
- Shop drawings showing bends, laps, couplers, chairs, and cover.
- Handling, storage, repair, inspection, and patching procedures.
- Delivery sequencing tied to pour breaks, crane access, and site storage.
Dass Rebar’s in-house rebar detailing service can coordinate these details before cutting and bending. Early review is particularly valuable when a project combines coated bars with black, stainless, or GFRP reinforcement.
Fabrication, delivery, and site handling
The coating must remain intact from the coating plant through placement. Fabrication, bundling, loading, unloading, storage, and lifting should be treated as part of the durability plan rather than as ordinary steel handling.
Fabrication controls
- Use clean equipment and remove burrs or sharp contact points that could score the coating.
- Follow the specified bend diameters and fabrication procedures.
- Keep coated bars identifiable through cutting, bending, bundling, and tagging.
- Separate coated and black reinforcement when the same project uses both products.
- Inspect bends and cut ends for visible damage before the bundle leaves the yard.
Loading and transport
- Use padded dunnage and protect contact points during loading.
- Prefer nylon or other suitable synthetic slings over abrasive lifting equipment.
- Do not drag bundles across concrete, formwork, gravel, or other rough surfaces.
- Secure bundles so movement during transport does not produce repeated abrasion.
- Plan delivery timing so bars are not left exposed to unnecessary site traffic or contamination.

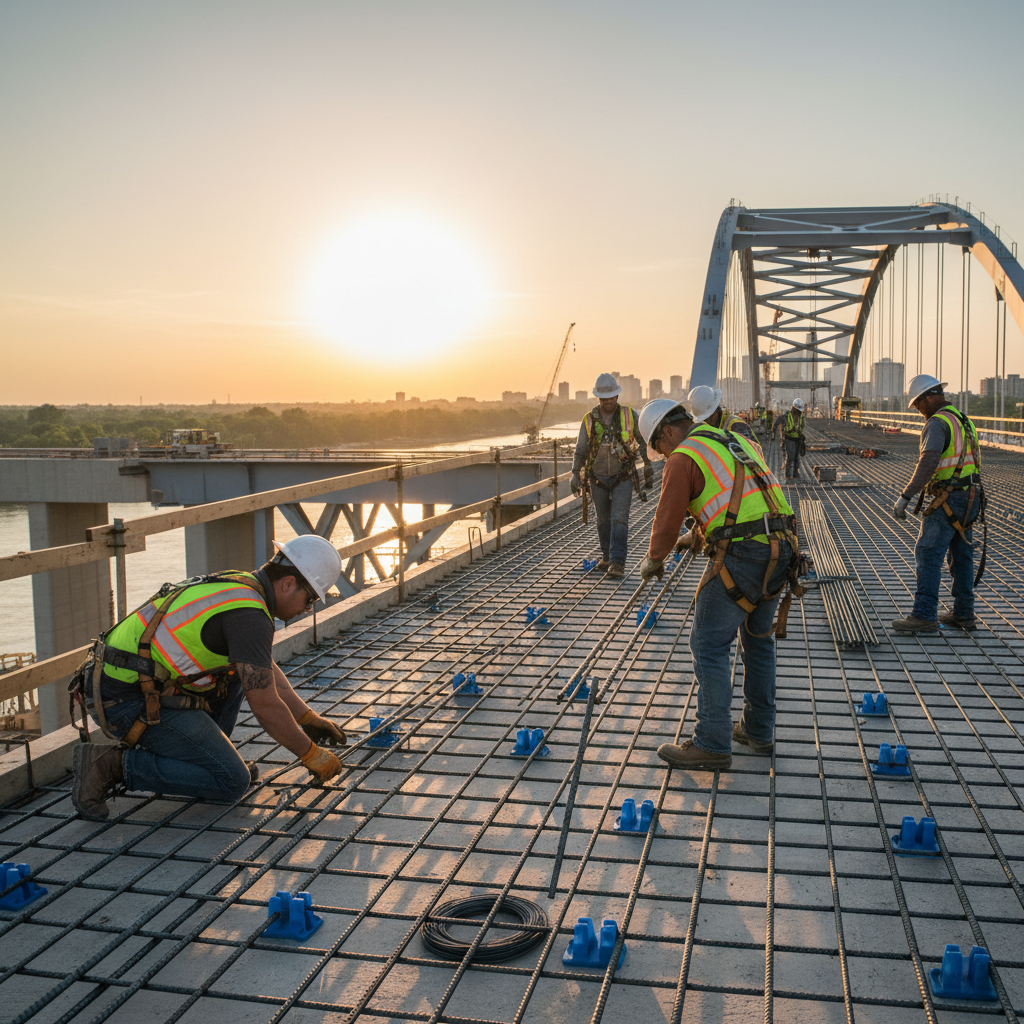

Storage and placement
Store bundles off the ground on suitable dunnage. Covering can reduce contamination and unnecessary exposure, but storage should still allow drainage and ventilation. On an active site, establish a marked storage area where forklifts, chains, welding operations, and material transfers will not strike the bars.
During placement, use appropriate chairs, spacers, and coated tie wire where required by the specification. Workers should avoid walking directly on unsupported mats, dragging bars into position, or using tools that can cut the coating. Concrete vibration must be sufficient for consolidation without displacing reinforcement or reducing specified cover.
Dass Rebar coordinates rebar fabrication and handling practices around the bar list and pour sequence, helping crews receive tagged bundles in a usable order.
Inspection, coating defects, and field repairs
Inspection should occur at receiving, after major handling events, during placement, and immediately before the pour. The purpose is not to reject every mark automatically; it is to identify damage, determine whether repair is permitted, and document the disposition before concrete covers the reinforcement.
Receiving checklist
- Match bundle tags against the delivery ticket and approved bar list.
- Confirm bar sizes, grades, shapes, quantities, and coated status.
- Look for gouges, cuts, exposed steel, impact damage, and coating separation.
- Verify that the storage arrangement prevents ground contact and dragging.
- Record visible issues with location, bundle identification, and photographs where appropriate.
Repair principles
Minor coating damage may be repairable with an approved patching material and procedure. The damaged area should be prepared as directed, cleaned of dust and contaminants, coated with compatible repair material, and allowed to cure before placement or concrete work. Do not improvise with ordinary paint, unapproved adhesive, or a patch product that does not meet the project requirements.
Extensive damage, repeated abrasion, exposed steel over a significant area, or damage affecting a bend may require engineering or supplier review. The contract documents determine whether the bar can be repaired, must be replaced, or needs a documented concession. A quick patch is not a substitute for the specified quality-control process.
Splices, couplers, cover, and concrete quality
Epoxy coating does not remove the need to develop and splice reinforcement according to the structural design. Lap lengths, development lengths, bends, and couplers must reflect the bar, grade, concrete, confinement, coating condition, and governing code or standard.
Lap splices
Lap splices can create congestion, especially in barriers, beams, thickened slabs, and construction joints. Staggering laps where permitted can improve placement and reduce a single high-density zone. The detailer should check clear spacing, concrete flow, vibrator access, and cover – not only whether the bars fit on paper.
Mechanical couplers
Couplers may reduce lap congestion and simplify staged construction. They should be selected and installed for the specified reinforcing bar and coating system. Coupler locations should be shown clearly on shop drawings, with access and inspection considered before fabrication.
Cover and concrete quality
Specified cover protects reinforcement by increasing the distance aggressive materials must travel. Chairs and spacers must hold the bar in position without damaging the coating or puncturing formwork. Low-permeability concrete, proper consolidation, curing, drainage, and crack control remain essential even when epoxy rebar is used.
Procurement and logistics with an Ontario rebar supplier
Rebar procurement is more than purchasing tonnes of steel. The bundles must arrive in the sequence that allows the crew to place them efficiently, while the shop drawings, tags, coating requirements, and delivery tickets remain aligned.
Dass Rebar supports projects from its Woodbridge operation at 370 New Enterprise Way. The business provides estimating, detailing, project management, fabrication, delivery, and on-site assembly, with a dedicated trucking fleet and stock of commonly used reinforcing products and sizes. These capabilities can be useful when a project has multiple pour areas, restricted access, or short staging windows.
- Estimating: review drawings, quantities, bar types, coating scope, and likely procurement risks.
- Detailing: coordinate laps, couplers, bends, openings, chairs, and material identification.
- Fabrication: cut, bend, bundle, tag, and inspect bars according to the approved package.
- Delivery: sequence loads around crane picks, pour breaks, lane access, and site storage.
- Assembly: support placement while maintaining cover, coating protection, and inspection readiness.
For projects still developing their quantities, the rebar supply planning guide provides a useful starting point for coordinating material, detailing, and delivery discussions.
Ontario project scenarios
Ontario’s freeze-thaw cycles and winter maintenance practices make exposure assessment important, but location alone does not select the reinforcement. The design must identify where salt, water, traffic, abrasion, and cracking are most likely to affect the concrete.
Parking garages and ramps
Vehicle traffic can carry salt into ramps, transition slabs, drains, and turning areas. A project may evaluate ECR for selected mats or edges while relying on waterproofing, drainage, concrete quality, and maintenance to limit exposure. Storage and delivery planning are especially important when garage floors are being used by several trades.
Residential and commercial podiums
Podium slabs often combine transfer zones, slab edges, penetrations, balconies, and retail interfaces. Early coordination can identify where bars are likely to congest around openings or where a coated product is required only in selected areas. Dass Rebar has supported Ontario residential and commercial work with estimating, detailing, fabrication, delivery, and assembly coordination.
Bridge and infrastructure work
Bridge work requires the closest review of the current owner standard. MTO guidance has changed the role of epoxy-coated steel in certain bridge applications, so a historical detail or older supplier assumption should not be carried forward without confirmation. Where the current design calls for stainless steel, GFRP, black reinforcement, or another premium strategy, the supplier should price and detail that material instead of substituting ECR.
A step-by-step workflow from takeoff to pour
A coordinated workflow reduces the chance that a coating decision is made after fabrication has already begun.
- Identify the owner and specification: confirm whether municipal, provincial, private, or infrastructure requirements apply.
- Map exposure zones: mark salt paths, splash areas, drains, joints, edges, wetting cycles, and abrasion locations.
- Select the reinforcement system: compare black, epoxy-coated, galvanized, stainless, GFRP, or hybrid options against the design.
- Confirm bar sizes and grades: use the issued drawings and approved material schedule, not assumed common sizes.
- Coordinate splices and congestion: review laps, couplers, openings, embeds, chairs, and construction joints.
- Prepare submittals: include coating, patching, handling, inspection, documentation, and tagging requirements.
- Approve shop drawings: verify that coated and uncoated bars are distinct and that the delivery sequence is practical.
- Fabricate and inspect: maintain clean equipment, protected contact points, accurate tags, and quality records.
- Deliver and store: use padded dunnage, suitable slings, off-ground storage, and a controlled staging area.
- Place and tie: maintain cover, avoid abrasion, and use compatible chairs, spacers, and tie wire.
- Repair and document: address permitted defects with approved materials and record unresolved issues.
- Complete the pre-pour check: verify bar size, spacing, laps, couplers, cover, cleanliness, and coating condition.
Common mistakes to avoid
- Assuming epoxy is accepted everywhere: always check the current owner and project specification.
- Ordering before the exposure review: a late material change can affect detailing, price, lead time, and approvals.
- Using abrasive lifting equipment: chains, dragging, and unprotected contact points can damage the coating.
- Removing tags too early: mixed coated and black bars become difficult to identify in a busy staging area.
- Ignoring the concrete system: coating cannot compensate for poor cover, cracks, drainage, consolidation, or curing.
- Improvising repairs: use only the patching material and procedure accepted by the specification.
- Leaving splices until the field stage: late decisions can create congestion, rework, and placement delays.
A short toolbox briefing, a receiving checklist, and a pre-pour inspection form can prevent many of these problems.

Practical field checklists
Ordering checklist
- Approved reinforcement type and governing specification.
- Bar sizes, grades, shapes, quantities, and coating scope.
- Required certificates, coating records, and repair documentation.
- Shop-drawing approval date and revision number.
- Required delivery dates, pour breaks, access restrictions, and storage plan.
Placement checklist
- Bundles remain identifiable and free of unnecessary abrasion.
- Bars are supported at the specified cover and are not resting on formwork.
- Laps, couplers, openings, and construction joints match the approved drawings.
- Chairs, spacers, and tie wire are compatible with the project requirements.
- Visible coating damage is repaired, documented, or escalated before the pour.
The 10M rebar uses guide for Ontario projects can help orient early discussions about common bar applications, but project drawings and engineering documents remain controlling.
FAQ: epoxy coated steel rebar
Is epoxy-coated steel rebar still used in Ontario?
Yes, epoxy-coated steel rebar remains a recognized reinforcing-steel product and may be specified for suitable applications. However, current Ontario owner and Ministry guidance must be checked, particularly for bridge work. MTO guidance indicates that epoxy-coated steel is no longer its corrosion-protection strategy for certain bridge applications.
Does epoxy rebar prevent corrosion completely?
No. The coating is a barrier intended to delay chloride and moisture contact with steel; it does not make corrosion impossible. Concrete cover, permeability, crack control, waterproofing, drainage, curing, coating quality, and handling all influence performance.
Can epoxy-coated bars be cut, bent, and spliced?
They can be fabricated and detailed, but the work must follow the approved specification and handling procedures. Bends, cut ends, laps, and couplers require inspection, and any permitted coating damage must be repaired with approved material. Splice locations should be coordinated early to control congestion.
When should a project use stainless steel or GFRP instead?
Consider stainless steel or GFRP when the owner requires them, the exposure or design life warrants a higher-performance system, or non-metallic reinforcement is needed. GFRP changes structural and installation assumptions, while stainless steel has different procurement and cost considerations. The engineer should select the system and identify any hybrid zones.
Coordinate your reinforcement plan with Dass Rebar
For an Ontario project considering epoxy coated steel rebar, start with the drawings, exposure zones, governing specification, and pour schedule. Dass Rebar can help coordinate estimating, detailing, fabrication, delivery, and on-site assembly so the approved reinforcement arrives identified, protected, and sequenced for placement.
Next step: Share your drawings and target pour dates with the Dass Rebar team through the Dass Rebar homepage to discuss material selection, submittals, splice coordination, and delivery planning.
