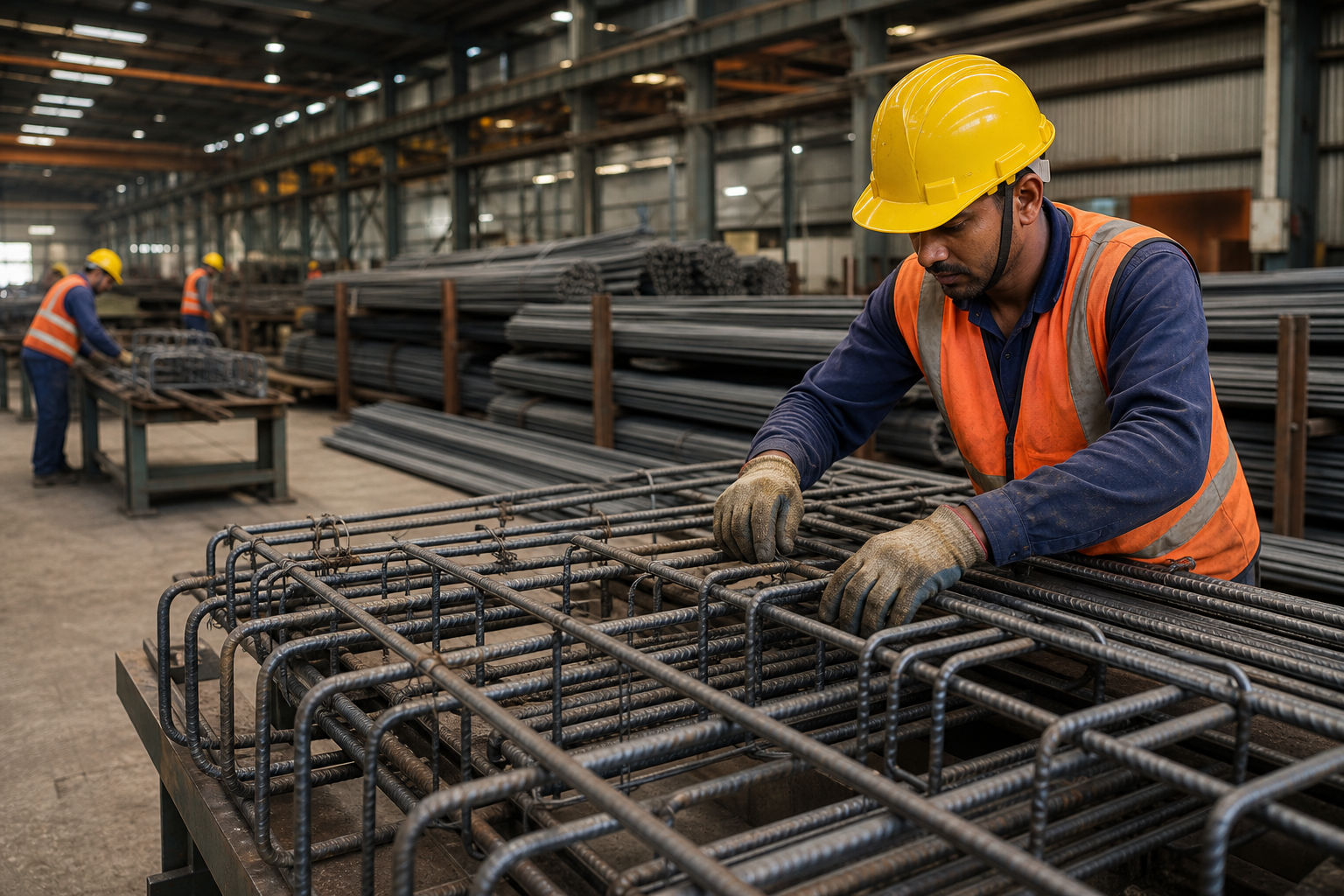

Rebar fabrication process: steps and checks for contractors
This article walks through the rebar fabrication process from approved drawings to site assembly and provides a practical decision checklist contractors can use to evaluate a fabricator or confirm internal readiness on Ontario projects. It highlights the documents to request, material-specific handling for Grade 500W and Grade 400W, epoxy coating and GFRB notes, and quality checks that reduce rework and pour holds.
Before fabrication: drawings, bar bending schedules and approvals
Confirm revision control and approvals
Do not start cutting or bending until you have the latest approved contract drawings and the current bar bending schedule (BBS). Fabrication errors most commonly start with a revision mismatch between BBS and structural drawings. Require a written approval log and a revision stamp on shop drawings that includes the approver and date. If the fabricator cannot show controlled revision history, establish a formal hold point.
Verify BBS versus structural drawings
Cross-check member references, lap splice lengths and development lengths shown in the BBS against the structural notes. Confirm any design changes have an issued change directive. Small notation differences cause shop rework and on-site delays, so include explicit reconciliation steps in pre-fabrication meetings.
What to look for in shop drawings and clash notes
Shop drawings should list bar marks, shapes, lengths, quantities and the member reference for each item. Look for clash notes where reinforcement conflicts with embedded items, sleeves or formwork. If the fabricator offers in-house detailing and a sample shop drawing with revision history, use that as evidence of process maturity and to shorten the review loop. For local fabrication options, see the Dass Rebar guide Rebar Fabrication: Cut Costs and Keep Jobs Moving in.
Material procurement and pre-fabrication checks
Verify grade and coating
Confirm the specified rebar grade such as Grade 500W or Grade 400W and whether epoxy coating, galvanizing, or GFRB is required. Different materials have different bending radii and handling requirements. Ask the supplier for written confirmation that the delivered stock matches the specified grade and coating before booking fabrication.
Certificates of compliance and mill test reports
Obtain certificates of compliance and mill test reports for each steel shipment. For infrastructure work and bridge decks, established checklists recommend certificates, clear bundle identification and inspection for coating damage on arrival; these are practical acceptance criteria you should include in purchase orders and on-site inspections as described in the FHWA bridge deck rebar checklist.
Storage and handling for coated bars and GFRB
Epoxy-coated bars and GFRB require protected storage and careful handling to prevent coating damage or fibre breakage. Inspect bundles on receipt for visible damage, verify correct tagging and reject shipments that show compromised coating or incorrect grade tags. Document any nonconformance and request immediate replacement or repair before fabrication starts.

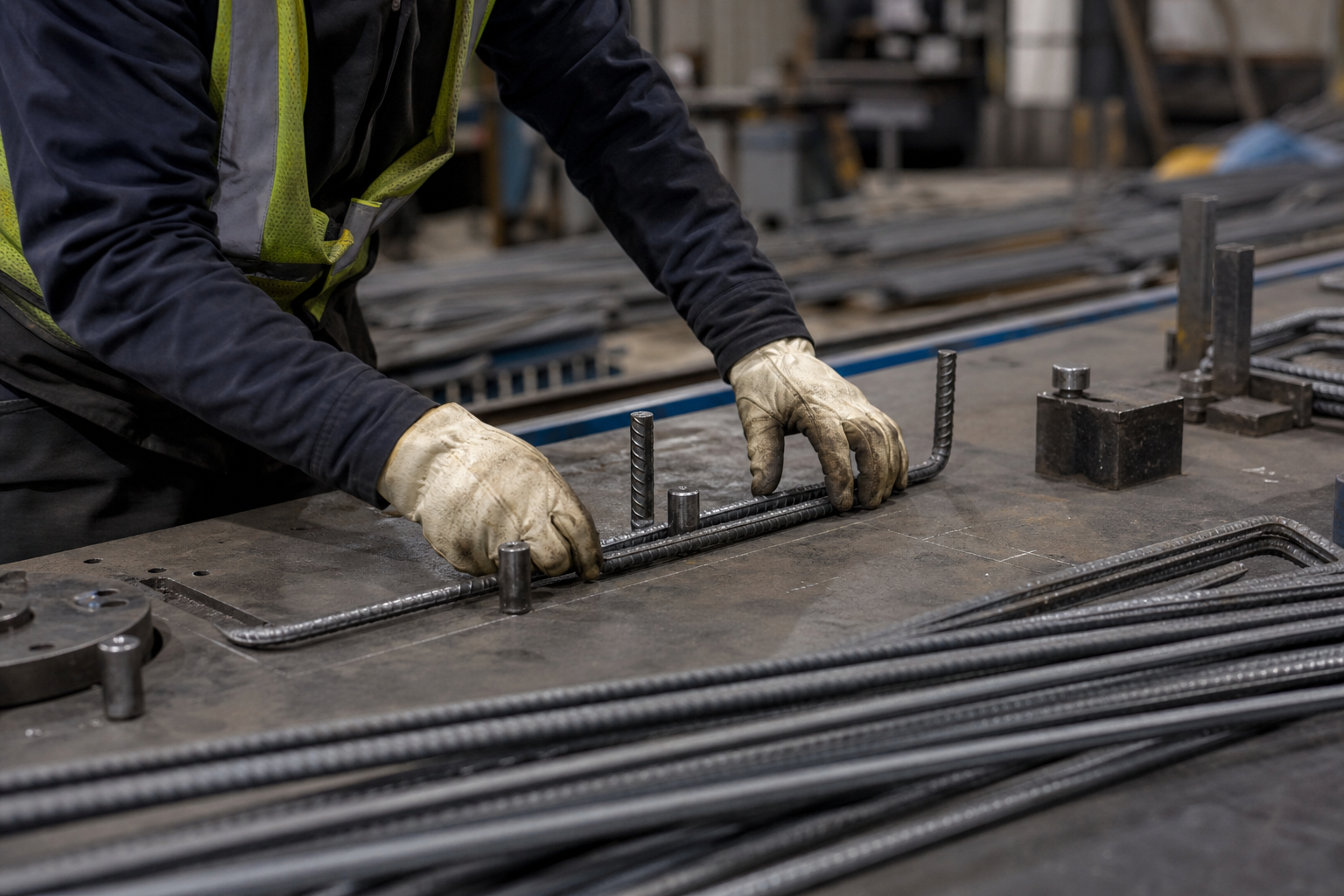

Fabrication shop: cutting, bending, marking and staging
Cutting plans and stock-length assumptions
A robust cutting plan maximizes yield from available stock lengths and reduces waste. Confirm the fabricator has reconciled cutting assumptions in the BBS with actual stock lengths. Industry workflows emphasise validating cutting plans before production to avoid cascading shortages or excess scrap.
Bending to code and custom bends
Bend radii and shape tolerances must conform to the structural specifications and local code. Verify that bending equipment settings match the bar sizes and grades on your job. Ask for sample bends from the first production run so you can inspect dimensions and angle tolerances before full production proceeds.
Bar marking and tag preservation
Bar marks and identification must be preserved through cutting, bending and staging. Labels or tags that fall off during handling make reconciliation at site difficult. The fabricator should use durable marks and preserve labels on each bundle and on the fabrication drawing. Check early-produced bundles to confirm marking standards are being followed.
Interim QC: quantities, member references and tolerance checks
Perform interim quantity checks at defined production milestones. Verify that member references printed on bundles match the BBS and shop drawings. The fabrication workflow recommended by industry practitioners highlights reconciling bar marks, diameters, shapes, lengths and quantities at fabrication checkpoints to prevent batch errors and misdeliveries.
Quality control and documentation to require at every stage
What belongs on a certificate of compliance
A certificate of compliance should reference the material batch, mill test results, the project and the purchaser, and be signed by an authorized representative. For coated bars, the certificate should also record the coating specification and any handling notes. Require certificates with every delivery and attach them to delivery tickets.
Bar bending schedule and mark reconciliation
Require a bar bending schedule that lists every mark, shape code, cut length, bend dimensions and quantity. Reconcile received bundles against the BBS before offloading or moving material to site. If counts do not match, stop work and document the shortfall to avoid improvisation on site.
Inspection records and nonconformance reporting
Ask for inspection logs that record who inspected each batch, what checks were performed and the outcomes. Nonconformance reports should state the issue, corrective action and disposition. Use written nonconformance records as a contractual mechanism to manage defects and replacements.
Packaging, staging and transport planning for Ontario projects
Labelled bundles and site tagging
Fabricated bundles should be clearly labelled with bar marks, member references and sequence numbers for placement. Use colour coding or numbered tags for multi-floor pours. Confirm labelling matches the delivery manifest so offloading crews can stage materials in pour sequence.
Load planning for multiple-site deliveries
When managing multiple sites or high-rise pours, plan loads by pour sequence and delivery windows. Dedicated fleet delivery reduces cross-load risk and improves schedule reliability. Ask the supplier to provide load manifests and tentative delivery windows so you can schedule cranes and labour accordingly. Dass Rebar’s dedicated trucking fleet is an example of a delivery model to consider when selecting a fabricator.
Special handling for epoxy-coated and GFRB products
Epoxy-coated bars must be protected from abrasion during transport and secured so bundles do not rub. GFRB requires careful lifting to avoid fibre damage. Include handling instructions on the delivery ticket and confirm the carrier follows them during offloading and staging.

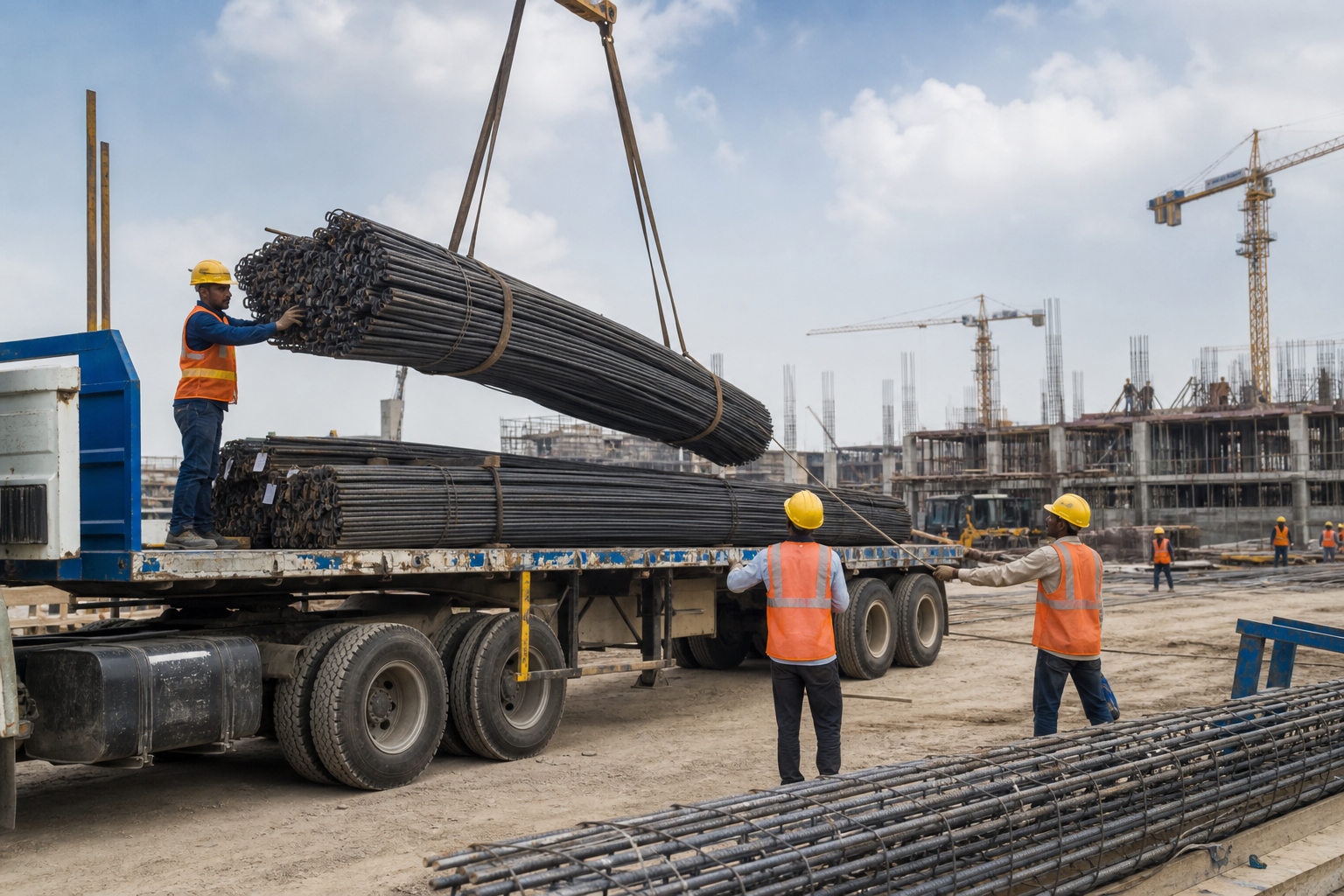

On-site delivery, offloading and assembly checks
Pre-pour rebar placement checklist
Before placement, run a short pre-pour checklist: verify delivery tickets against the BBS, inspect sample bundles for coating or handling damage, confirm support chair compatibility and check tie wire type when used with coated rebar. The FHWA bridge deck guidance highlights similar checks for coatings and supports, which are practical hold points on any concrete pour.
Inspecting coated bars and welded mesh on arrival
Inspect coated bars for chips and exposed steel. For welded wire mesh, verify gauge, panel dimensions and weld integrity. Document any defects and isolate affected bundles to prevent them from being placed inadvertently.
Tie-offs, supports and final placement tolerances
Confirm that supports, chairs and spacers are compatible with the selected rebar type and coating. Check placement tolerances against the contract drawings and capture sign-offs for critical tolerances before concrete placement. This reduces the risk of inspection holds and costly corrective work.
Decision checklist: how to evaluate a fabricator and confirm internal readiness
Use the following compact checklist in procurement meetings and pre-fabrication reviews. Mark each item as must have or nice to have when comparing bids.
- Documentation and compliance: current approved drawings and BBS, certificates of compliance with mill test reports, shop drawings with revision stamps. Must have.
- Fabrication process and QC: sample shop drawings, interim QC logs, bar mark preservation and bending tolerance checks. Must have.
- Material capabilities: able to supply Grade 500W and Grade 400W, epoxy-coated options, GFRB and welded wire mesh in common gauges. Must have for many Ontario jobs. See product capabilities at Dass Rebar.
- Logistics and scheduling: transparent lead times, load manifests and dedicated fleet delivery when needed. Nice to have is a guaranteed delivery window, but ask for realistic windows instead.
- Commercial and communication: clear nonconformance reporting, written escalation path and a single point of contact for project coordination. Must have.
Common contractor objections include price and lead time. Counter these with fact-based questions: request a sample production schedule, a yield calculation and documented QC steps. A mature fabricator will provide these without hesitation.
Common issues, red flags and how to mitigate them
- Mismatch between BBS and delivered bundles. Mitigation: staged inspections and written reconciliation before offload.
- Missing certificates of compliance or mill reports. Mitigation: hold payment or refuse offload until paperwork arrives.
- Damaged epoxy coating or GFRB fibre breakage. Mitigation: inspect on arrival and segregate defective bundles for replacement.
- Poor bundle labelling or lost tags. Mitigation: require durable, redundant labelling and include photos in the delivery manifest.
- Sequencing errors in multi-pour deliveries. Mitigation: enforce load manifests and defined delivery windows, and use a dedicated fleet if available.
Contract language that helps reduce disputes includes specified hold points, required documentation on delivery tickets and a defined nonconformance resolution timeline. Insist on written remedies for repeated defects.
Frequently asked questions
What documents should a fabricator provide before starting rebar fabrication?
Require approved contract drawings, the latest BBS, shop drawings with revision stamps, a sample bar bending schedule and confirmation of material certificates of compliance and mill test reports. These should be listed in the purchase order and verified before cutting begins.
How is epoxy-coated rebar handled differently during fabrication and delivery?
Epoxy-coated rebar must be handled to avoid chips in the coating. That means protected storage, padded handling during bending and transport, plastic-coated tie wire or compatible fasteners, and inspection on receipt. Documented handling notes and inspection acceptance criteria reduce the chance of placing damaged bars.
What MTO-related checks should I require when buying rebar for an Ontario infrastructure project?
For MTO projects, require supplier evidence of approved product lines, certificates of compliance tied to mill batches, clear bundle identification and documented inspection of coated bars for damage. Include these requirements in procurement documents and acceptance criteria. Dass Rebar lists MTO approval and product options as part of its offering.
What are the most common fabrication errors and how can I spot them early?
The most common errors are revision mismatches between drawings and BBS, incorrect bar marks, wrong bend radii and damaged coating on epoxy bars. Spot them early by inspecting sample bends, reconciling early bundles to the BBS and verifying certificates and tags on receipt.
Which decision criteria best separate reliable fabricators from risky ones?
Look for documented revision control, visible QC checkpoints, prompt certificate delivery, material range (Grade 500W, epoxy and GFRB) and transparent logistics. A dedicated fleet and demonstrated in-house detailing shorten coordination cycles and are strong indicators of reliability.
For technical practice models of quality control in fabrication, consider the SIDA rebar fabrication workflow and the FHWA bridge deck rebar checklist as references for what to require during procurement and inspection. These resources describe the importance of confirming drawing and BBS revisions before fabrication and preserving labels through cutting and delivery, and they outline certification and coating checks you can apply to general reinforcement acceptance.
