Structural rebar detailing is the production of precise reinforcement drawings, bar lists, and bend schedules that convert engineering design into buildable instructions. It coordinates laps, cover, and couplers, and aligns fabrication with site sequencing. For Woodbridge projects, Dass Rebar’s in-house team integrates detailing with estimating, fabrication, delivery, and on-site assembly across Ontario.
By Navjot Dass · Last updated: June 29, 2026
Summary
Rebar detailing translates structural intent into shop drawings and bar schedules crews can install without guesswork. Clear, sequence-aware sheets cut RFIs, speed pours, and improve safety. Dass Rebar connects detailing to fabrication and delivery so Ontario jobs hit milestones with predictable, MTO-compliant reinforcement.
- What you’ll learn: definitions, workflows, detailing methods, best practices, tools, and examples.
- Why it matters: fewer clashes, safer placements, tighter schedules, and better durability.
- How we help: integrated estimating, in-house detailing, fabrication, trucking, and on-site assembly.
- Where it applies: residential, commercial, and infrastructure builds across the GTA and Ontario.
- Materials coordinated: Grade 500W/400W, epoxy-coated bars, GFRP, welded wire mesh, 10m/15m/20m sizes.
Table of contents
- What is structural rebar detailing?
- Why rebar detailing matters
- How structural rebar detailing works
- Types, methods, and approaches
- Best practices
- Tools and resources
- Case studies and examples
- Frequently Asked Questions
- Conclusion and next steps
Local considerations for Woodbridge
- Traffic windows near Queen St / Highway 50 affect crane picks and pump timing. Sequence drawings to minimize road exposure and stage deliveries accordingly.
- Winter pours demand tighter cover control and clear heater/blanket notes. Flag cold-weather splice allowances on placing sheets.
- Sites around Fogal Rd / Highway 50 benefit from prefabricated cages; include lift points and rigging notes on drawings to reduce field decisions.
What is structural rebar detailing?
Structural rebar detailing is the creation of shop drawings, bar marks, and bend schedules that define sizes, spacing, laps, cover, and placement for concrete members. It converts engineer-of-record intent into unambiguous, code-aligned instructions for fabrication and field crews, reducing rework and safety risks.
Think of structural rebar detailing as the bridge between a structural set and a safe, efficient pour. Detailers resolve geometry for bars, hooks, stirrups, and couplers; coordinate with embeds and openings; and compile bend schedules and bar lists that a fabrication shop can execute consistently.
- Core outputs: placing drawings, bar lists, bend schedules, transmittals, and as-builts.
- Controls: clear cover, spacing, lap vs coupler strategy, development and anchorage, and supports.
- Interfaces: forming, MEP/embedded items, crane reach, and pour sequencing.
- Members covered: footings, walls, cores, slabs, beams, columns, stairs, and transfer elements.
Because Dass Rebar houses estimating, detailing, project management, fabrication, and delivery, sheet revisions flow cleanly into production. That integration helps GCs avoid the all-too-common pattern where approved drawings lag site reality by a cycle or two.
For foundational definitions and visuals, our introductory detailing guide and this explainer on rebar drawings outline what good placing sheets include and how installers interpret them on busy decks.
Why rebar detailing matters
Great detailing prevents field conflicts, shortens cycles between pours, and boosts safety. Clear bar marks and congestion checks reduce RFIs and improvisation. When detailing feeds fabrication and delivery directly, Ontario projects hit milestones with fewer delays and material waste.
Detailing quality shows up first in site safety. Fewer protruding dowels, cleaner lap locations, and well-defined supports reduce tripping and handling hazards. In freeze-thaw regions and deicing environments common across Ontario corridors, accurate cover preserves durability and reduces long-term maintenance risk.
- Schedule certainty: sequence-aware sheets keep crews moving through repeatable cycles.
- Quality control: lap lengths, cover, and grade checks are documented and signed off.
- Material efficiency: optimized bend schedules and mesh selection cut waste and handling.
- Compliance: MTO-approved materials support infrastructure-grade expectations where specified.
Delivery timing is part of the safety and schedule story. For context on logistics impacts, see this overview of timely rebar delivery, which explains how predictable windows protect pump days and keep cranes productive.
In our experience on Woodbridge mid-rise cores, front-loading coupler locations and substitution notes during detailing prevented congestion at door and penetration zones. Fabrication ran directly from approvals, and deliveries were staged per floor to avoid cluttered laydown areas.
How structural rebar detailing works
A reliable workflow runs from design intake and congestion checks to placing drawings, bend schedules, and coordinated approvals—then to fabrication, staged delivery, and as-builts. Dass Rebar manages this under one roof so each revision immediately reaches production and site teams.
- Design intake and review: Confirm structural notes, exposure category, cover, tolerances, and member priorities. Identify high-risk zones (cores, transfer slabs, deep beams).
- Modeling and layout: Create layouts for main bars, distribution steel, and confinement. Check clearances to embeds, sleeves, and openings.
- Splice and coupler strategy: Decide where to lap, where to couple, and how to avoid congestion at T-joints and doors. Capture consistent rules across floors.
- Placing drawings: Produce sequence-aware sheets (by pour break and crane reach) with clear bar marks, sections, and elevations that crews can scan quickly.
- Schedules and lists: Compile bend schedules and bar lists that align with fabrication lines and tagging conventions.
- Submittals and approvals: Route packages, track comments/RFIs, and issue clean revisions with deltas highlighted.
- Fabrication: Cut, bend, tag, and bundle by pour and zone for just-in-time delivery.
- Delivery and assembly: Coordinate trucking windows, laydown limits, and prefabricated cages to match pump calendars.
- As-builts: Capture field changes and finalize for O&M and downstream phases.
We keep this loop tight by linking placing sheets to production and trucking. For a deeper look at shop readiness and bundling logic, review our rebar fabrication guide, which shows how clean tags and bundle IDs cut search time on the deck.
Types, methods, and approaches
Detailing can be 2D, 3D, or hybrid. Use 2D for speed on standard members, 3D for congested zones and clash detection, and hybrid to keep submittals nimble. Material choices—Grade 500W, epoxy-coated, GFRP, mesh—depend on exposure, spacing, and constructability.
Approach selection
- 2D CAD detailing: Fast for repetitive slabs and simple walls. Requires experienced checkers to manage congestion and openings.
- 3D BIM rebar: Ideal for cores, transfer elements, and coordination with PT/MEP. Enables lift-by-lift visualization and automated clash detection.
- Hybrid: Model only the riskiest zones in 3D (stairs, link beams), produce 2D sheets elsewhere to accelerate approvals.
Member strategies
- Slabs: Welded wire mesh (6×6 at 6/6, 9/9, 10/10) for temperature/shrinkage; loose bars for strips or openings.
- Walls and cores: Couplers at lift joints reduce lap congestion and help maintain cycle times.
- Beams and columns: Confinement zones, hook geometry, and stirrup spacing tuned to development and seismic notes.
Comparison: 2D vs 3D for rebar detailing
| Criteria | 2D CAD | 3D BIM |
|---|---|---|
| Speed on simple work | High | Moderate |
| Clash detection | Manual checks | Automated + visual |
| Change management | Sheet-by-sheet | Parametric updates |
| Fabrication data | Bar lists from schedules | Direct takeoff from model |
| Field visualization | 2D sections/details | 3D views and sequences |
For congested transfer slabs in the GTA, our teams often run a hybrid: 3D reinforcement in the tightest cores and links, then 2D placing sheets for standard bays. For more on modeling benefits, explore our primer on 3D rebar detailing.
Where concrete interacts with steel framing systems, reinforcement must respect load paths and connection geometry. For broader context on framing coordination, see this structural framing systems guide.
Best practices for structural rebar detailing
Sequence drawings by pour break and access. Lock cover early, keep laps out of openings, route couplers to lift joints, and label bundles by zone. If a bar can’t be placed safely and repeatably, change the detail before it reaches the fab line.
- Sequence-aware sheets: Organize by crane reach, pour, and elevation. Crews should find bar marks in seconds.
- Clear bar marks: Keep marks short and consistent; use legible section cuts aligned to installer movement.
- Lap/coupler logic: Avoid T-joint congestion; standardize splice locations floor-to-floor.
- Cover control: Specify chairs/spacers suited to exposure and finish; call out checks before inspections.
- Mesh optimization: Choose 6/6, 9/9, or 10/10 gauges for crack control without over-handling.
- Substitutions: Pre-approve epoxy-coated options for deicing or marine exposure zones.
- Feedback loop: Capture crew input after each pour and apply lessons to the next cycle.
Foundation walls are where best practices pay off quickly. Our overview on foundation wall details shows lap zones and hook geometry that help installers maintain cover while keeping cycle times steady.
One more habit of fast, safe jobs: finalize lap and coupler zones before embeds and openings are locked. Doing this during detailing avoids late re-issues and protects your pour calendar.
Tools and resources
Reliable detailing blends skilled people with the right platforms. Teams use CAD/BIM, bar-list automation, and QA checklists, then connect outputs to fabrication and delivery tracking. Dass Rebar’s integrated stack keeps drawings, production, and trucking aligned with pour calendars.
Core software
- Rebar modeling in BIM for congested areas and lift-by-lift visualization.
- 2D CAD for rapid sheet production on standard members and repetitive floors.
- Schedule generators that export clean bar lists and tags to the shop.
Materials we coordinate

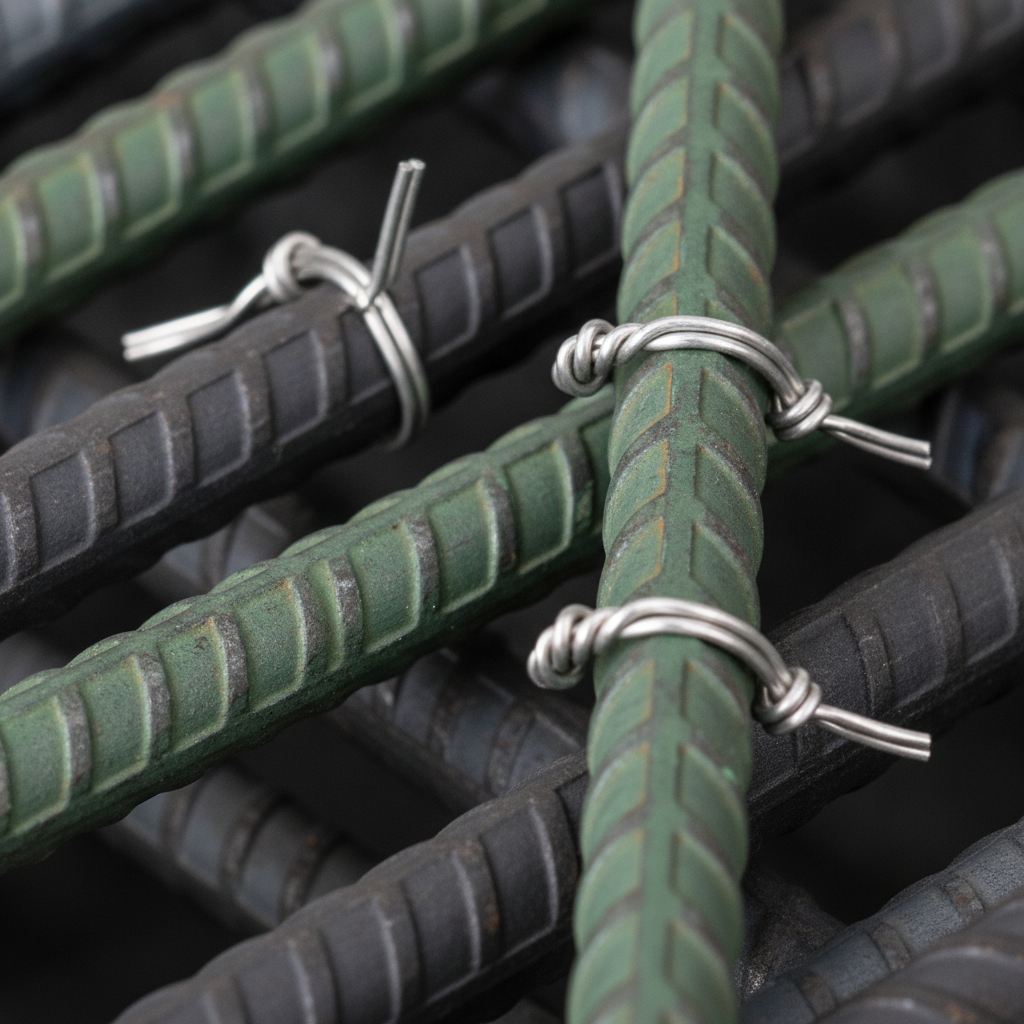

- Grade 500W and 400W reinforcing bars, including epoxy-coated options for corrosive exposure.
- Glass Fibre Reinforcing Bars (GFRP) where non-corrosive reinforcement is specified.
- Welded wire mesh in standard 6×6 patterns at 6/6, 9/9, and 10/10 gauges.
- Common sizes like 10m, 15m, and 20m (on request) aligned to fabrication capacity and delivery windows.
Learning and safety references
- Reinforcement development and cover requirements summarized on internal checklists.
- Field handling guidance for capping, tying, and safe lifts with rigging points marked on cages.
- Concrete-rebar interaction explained in this primer on how rebar strengthens concrete.
These resources inform our submittals and shop travelers, keeping the same intent visible from drawing room to deck. When delivery windows matter, pair them with the practices outlined in the article on timely rebar delivery.
Need a constructability scan? Share your latest structural set. We’ll flag high-risk zones, align lap/coupler logic, and propose delivery staging so your next Woodbridge pour stays on calendar.
Case studies and examples
Integrated detailing accelerates schedules when it’s tied to fabrication and trucking. By aligning approvals and bundles to pour calendars, Dass Rebar kept Ontario projects moving while meeting material and durability expectations on residential, commercial, and infrastructure work.
- The Hawthorne Residences (Toronto): Hybrid detailing put couplers at lift joints to decongest core steel, stabilizing pump days despite tight laydown space.
- Hickory Terraces (Waterloo): Mesh was optimized per bay; deliveries staged by floor reduced double-handling and preserved crew energy late in the day.
- The Grand at Universal City (Pickering): Early coordination of openings with bar substitutions prevented rework in transfer elements and protected cover.

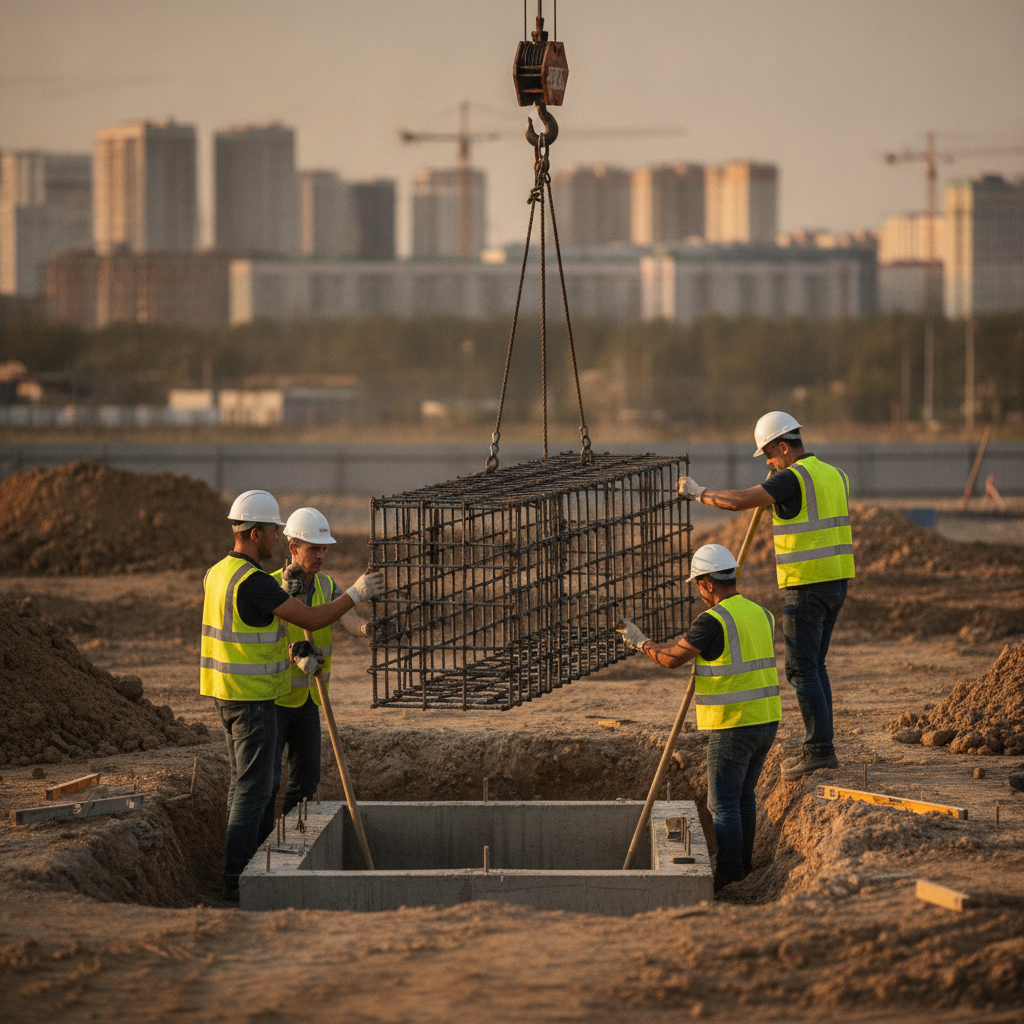

Closer to Woodbridge, mid-rise cores benefit from prefabricated cages placed directly into footings. Where access is tight near Queen St / Highway 50, bundles labeled by zone and crane reach let crews lift and place without sorting. For fundamentals, start with detailing drawings and the broader rebar detailing guide that connects sheets to field rhythm.
Frequently Asked Questions
Most questions center on scope, approvals, and how detailing connects to fabrication and delivery. The answers below help GCs and concrete leads plan submittals and pump days with fewer surprises.
What’s included in a structural rebar detailing package?
You receive placing drawings, bar lists, and bend schedules aligned to pour breaks. We include cover, lap or coupler notes, sections and elevations, plus a transmittal for approvals. On approval, the same data feeds fabrication with labeled bundles for delivery and assembly.
How does detailing reduce RFIs on site?
Clarity prevents improvisation. We resolve lap locations, embed conflicts, and cover requirements before fabrication. Crews get simple bar marks, clean sections, and pre-approved substitutions, so they install confidently without pausing work to ask design questions mid-pour.
When should we switch from laps to couplers?
Use couplers when laps cause congestion—common at doors, penetrations, and lift joints in walls and cores. Couplers also help when cover is tight or when you need predictable bar terminations for climbing form cycles and repetitive pours.
Do you coordinate welded wire mesh with slab cycles?
Yes. We optimize mesh gauge and panel layout for crack control, crane reach, and laydown limits. Deliveries are sequenced by floor and zone to match pump days, so crews aren’t moving heavy panels multiple times.
Conclusion and next steps
Structural rebar detailing safeguards safety, schedule, and material efficiency. The strongest results come from partners who connect drawings to fabrication and delivery. Dass Rebar brings that integration to Woodbridge and across Ontario, keeping pours predictable and compliant.
Key takeaways
- Detailing turns design into buildable instructions that prevent rework and RFIs.
- Hybrid 2D/3D checks de-risk congested cores and transfer elements.
- Sequence-aware sheets and labeled bundles cut search time and speed placements.
- MTO-aligned materials and clear cover notes improve durability in Ontario climates.
Action steps
- Share your latest structural set for a quick constructability scan.
- Prioritize high-risk zones for 3D reinforcement checks.
- Lock lap and coupler standards before embed and opening layouts finalize.
- Align fabrication tags and delivery lots to your pour calendar.
If you’re coordinating a project in Woodbridge or the GTA, we can map structural rebar detailing to your schedule, then roll approvals straight into fabrication and delivery. Let’s plan the next pour together.
